NO SACRIFICES

For the consumer who is looking for ultra-light weights, but doesn’t want to sacrifice style, amenities, and comfort... we’ve designed the Tracer series travel trailers. The Tracer Ultra-Lite offers spacious layouts, plush residential furniture, and other high end features not typically seen in an ultra-lite trailer that is often thousands of pounds lighter than traditional travel trailers! The Tracer has raised the bar for comfort and luxury in an ultra-lite brand. In your next travel trailer, make NO SACRIFICES!

Light weight. Easy to tow. Loaded with features. No sacrifices!

Care Camps, fighting cancer and making memories

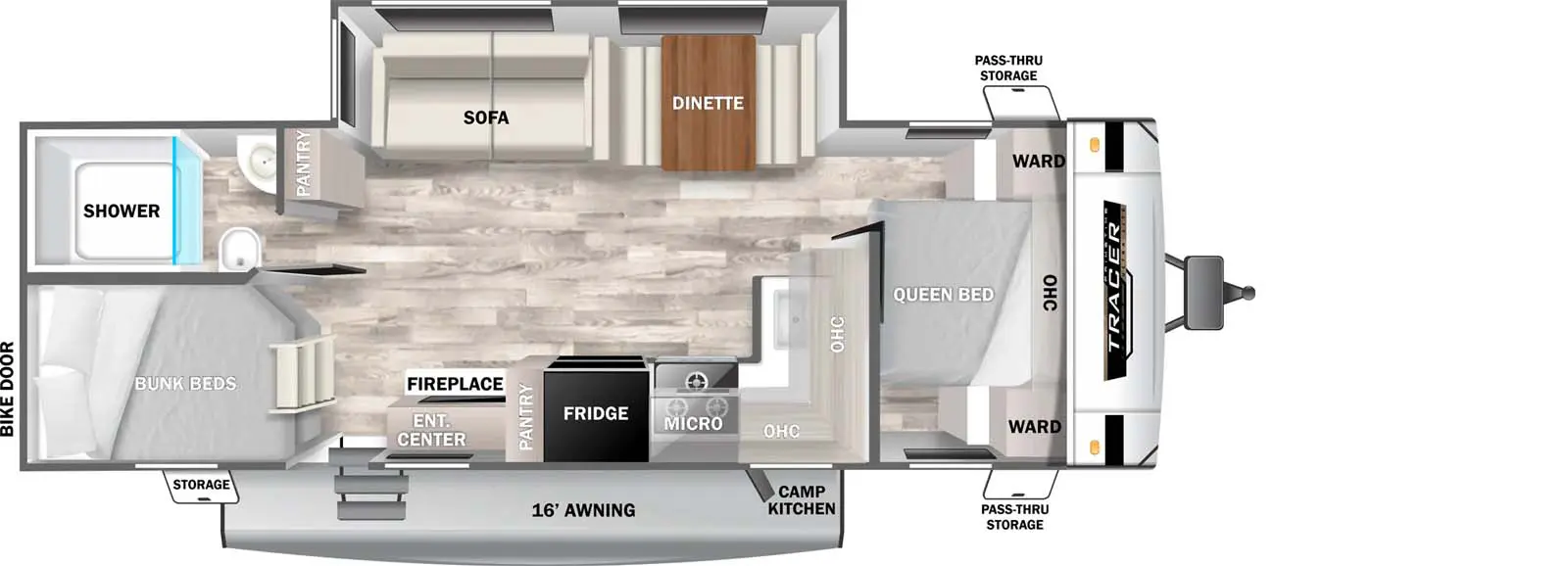

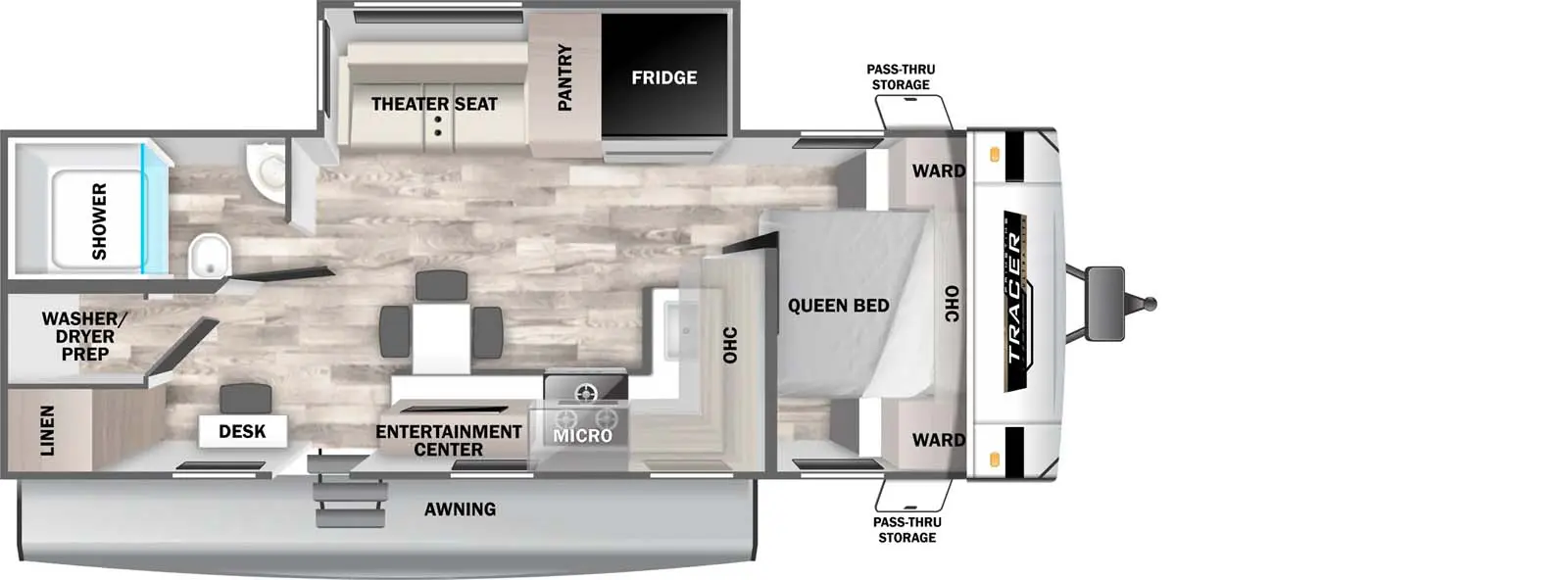

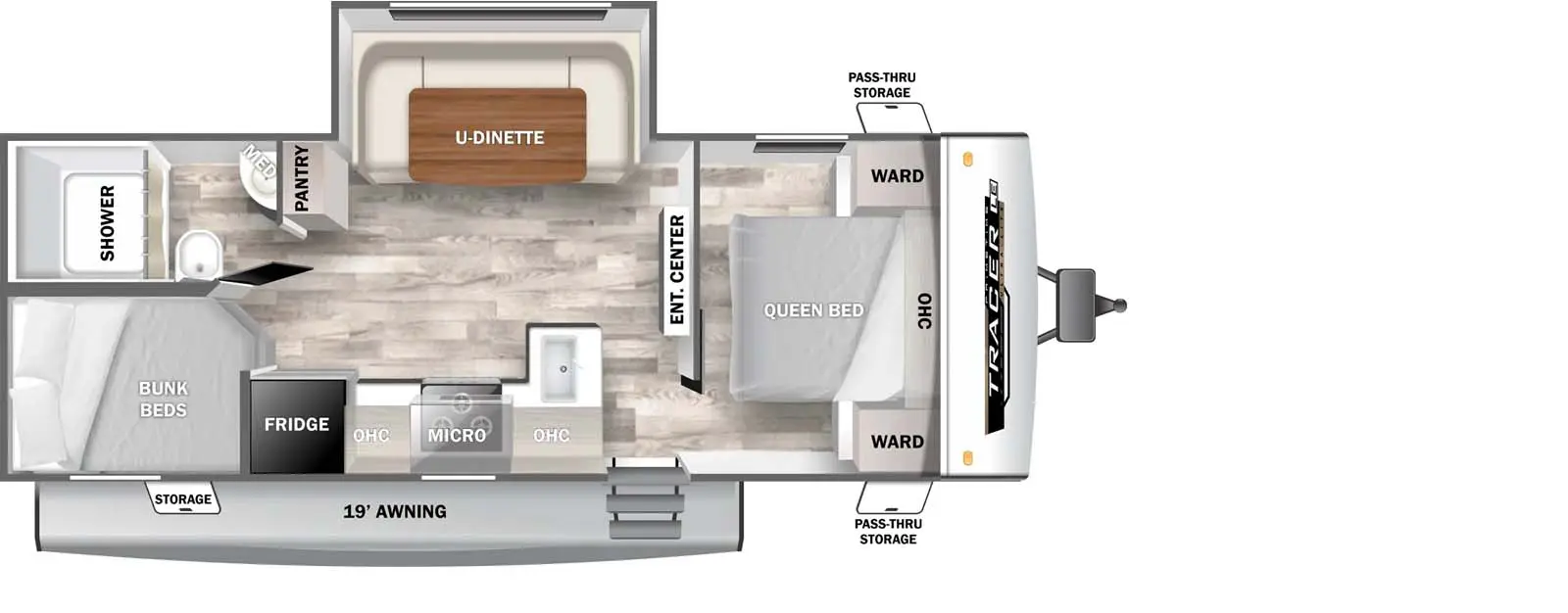

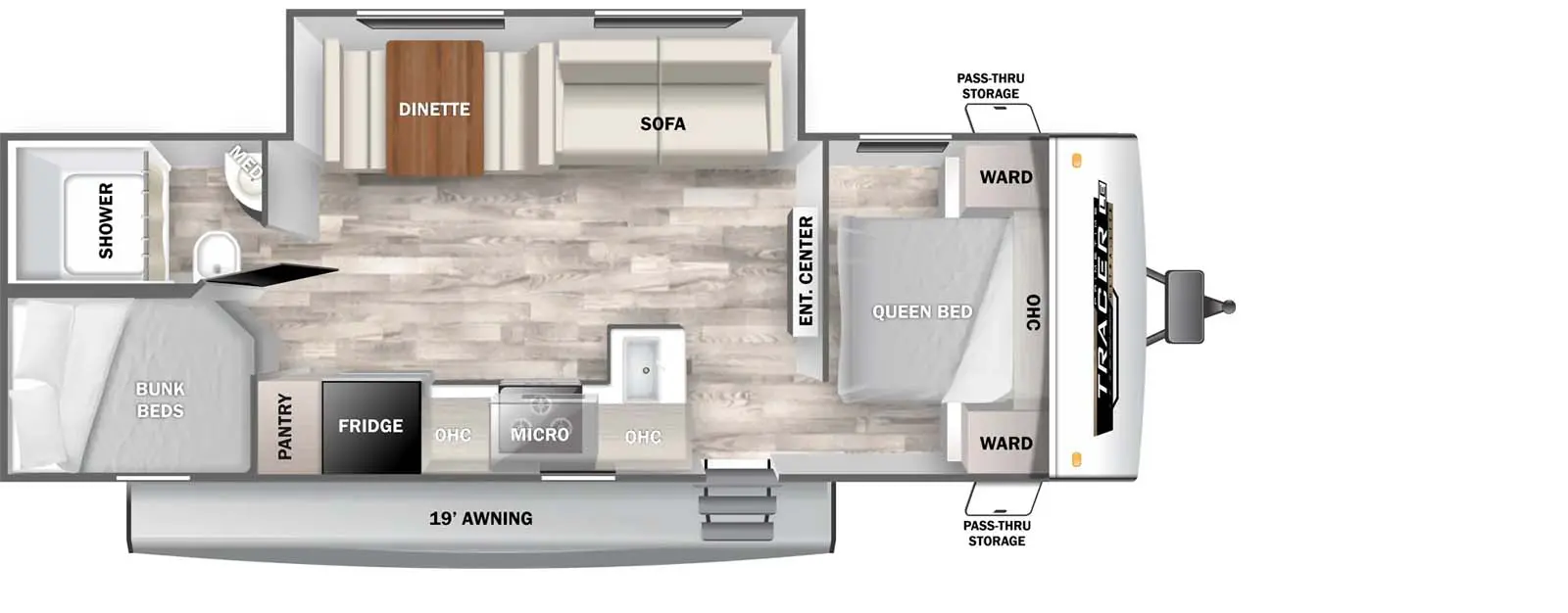

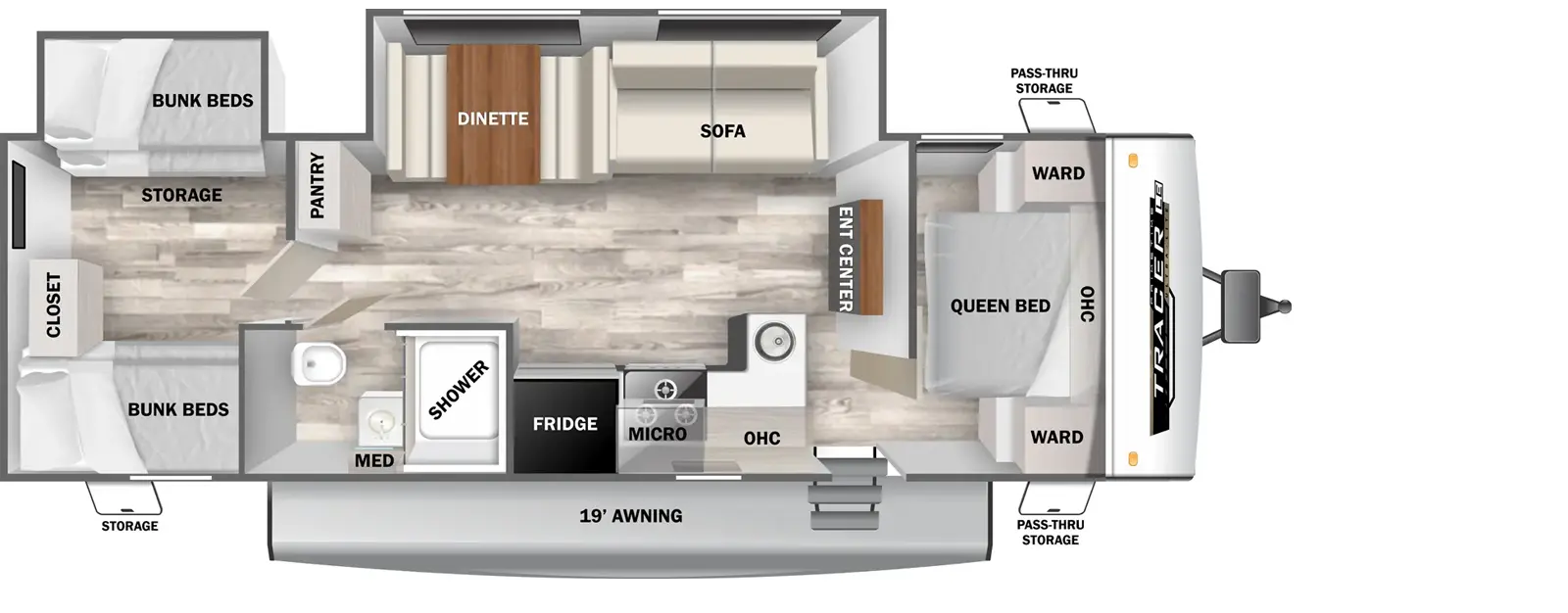

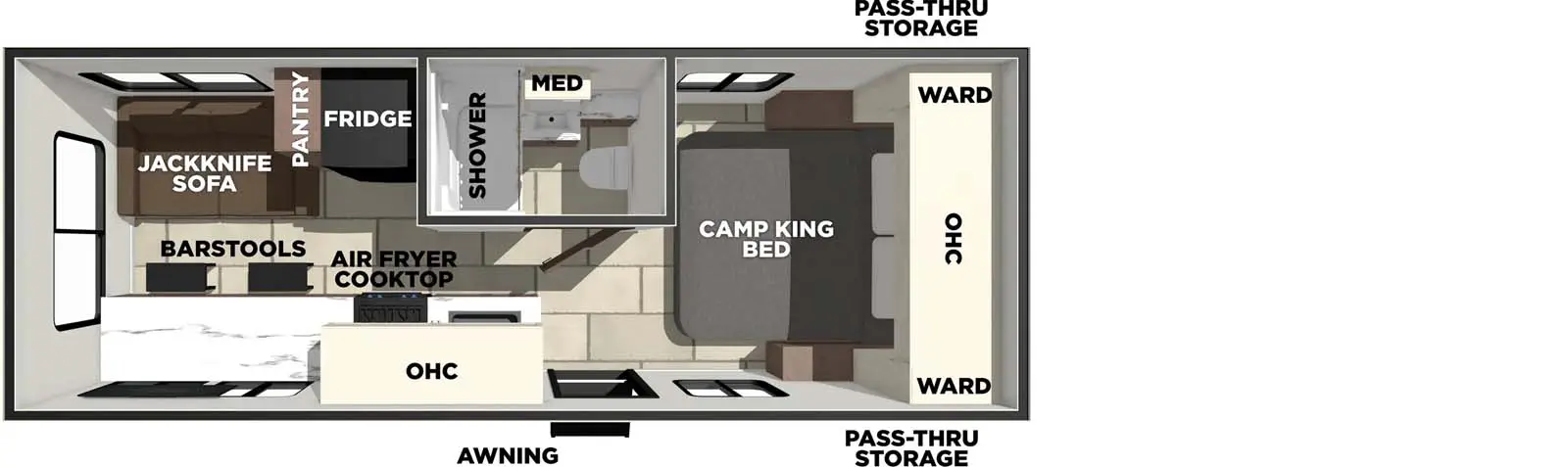

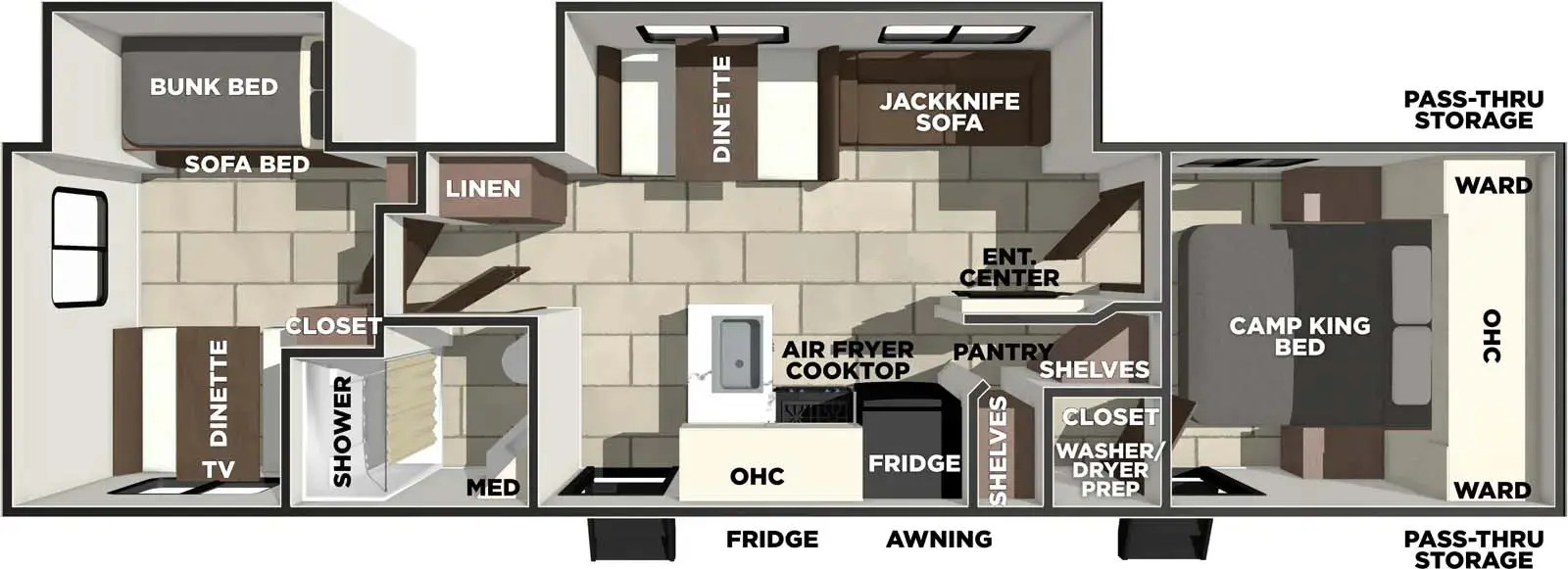

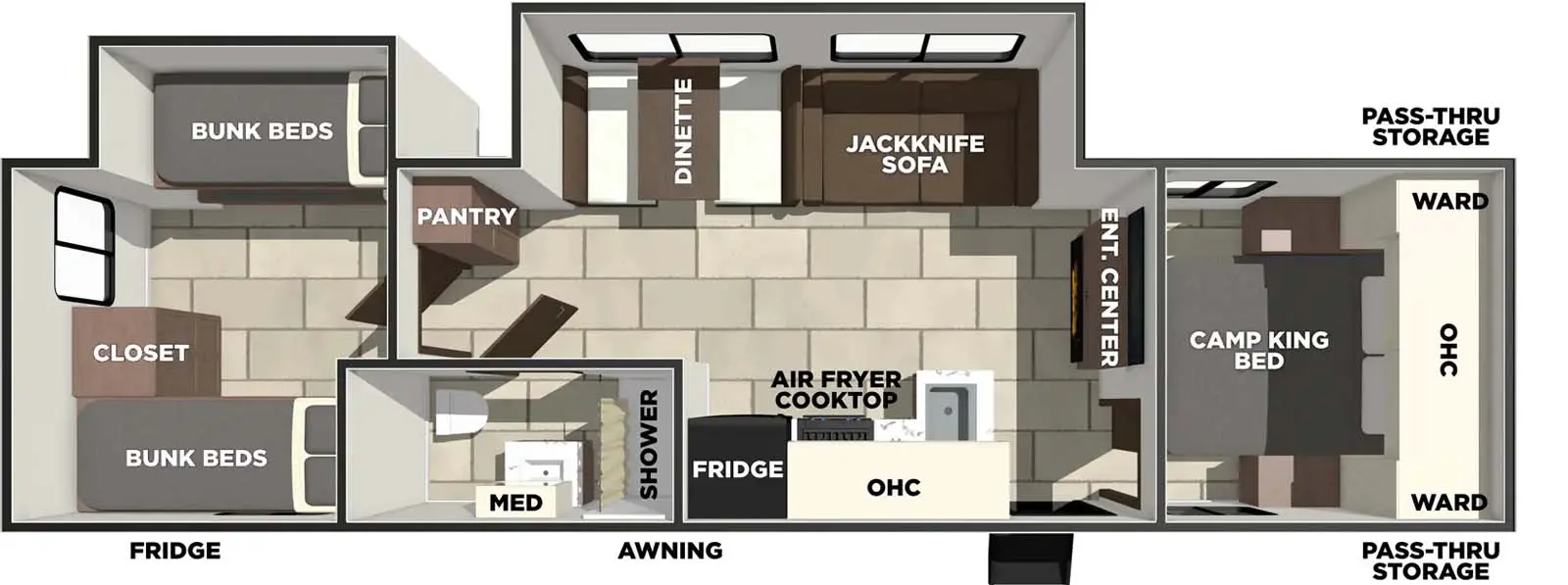

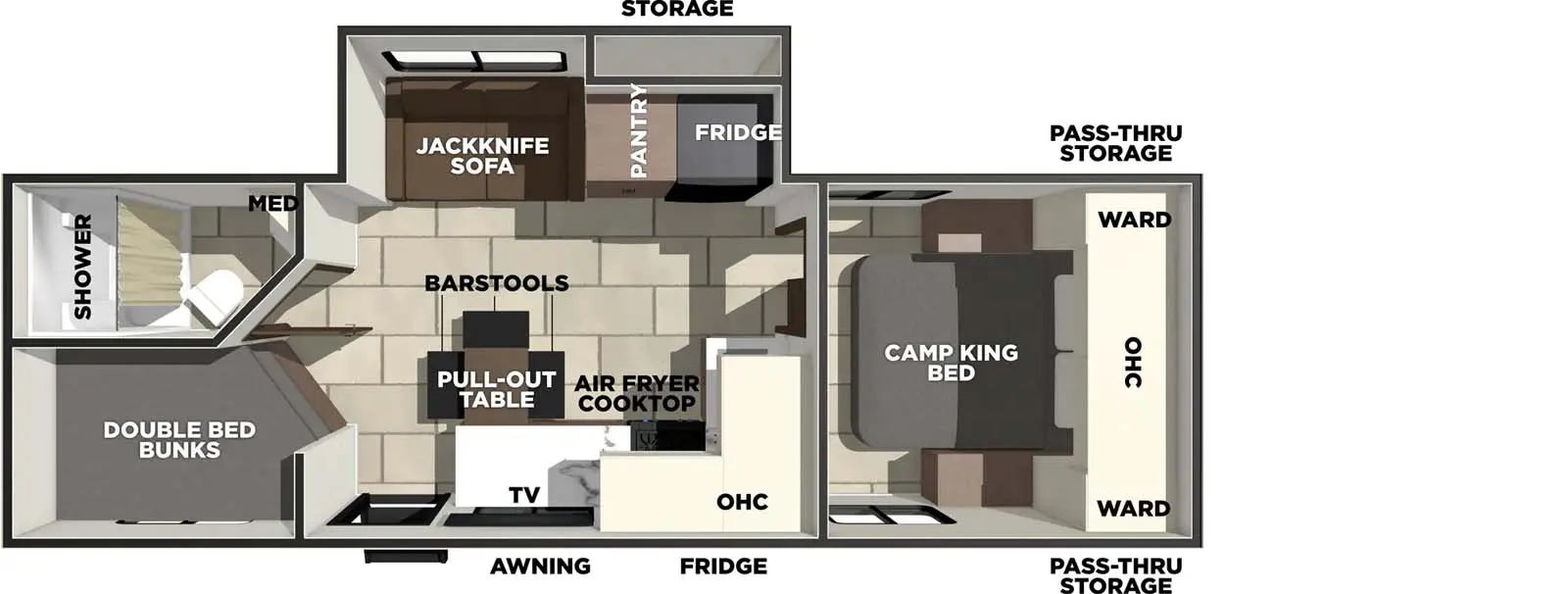

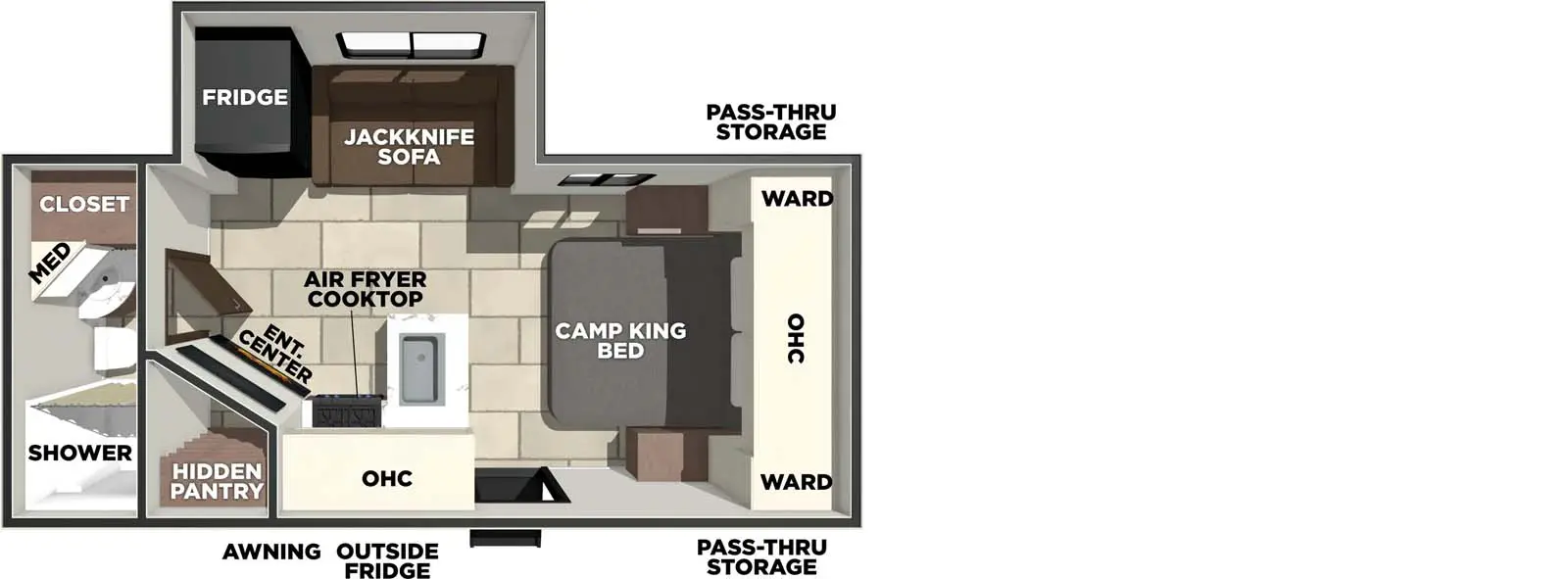

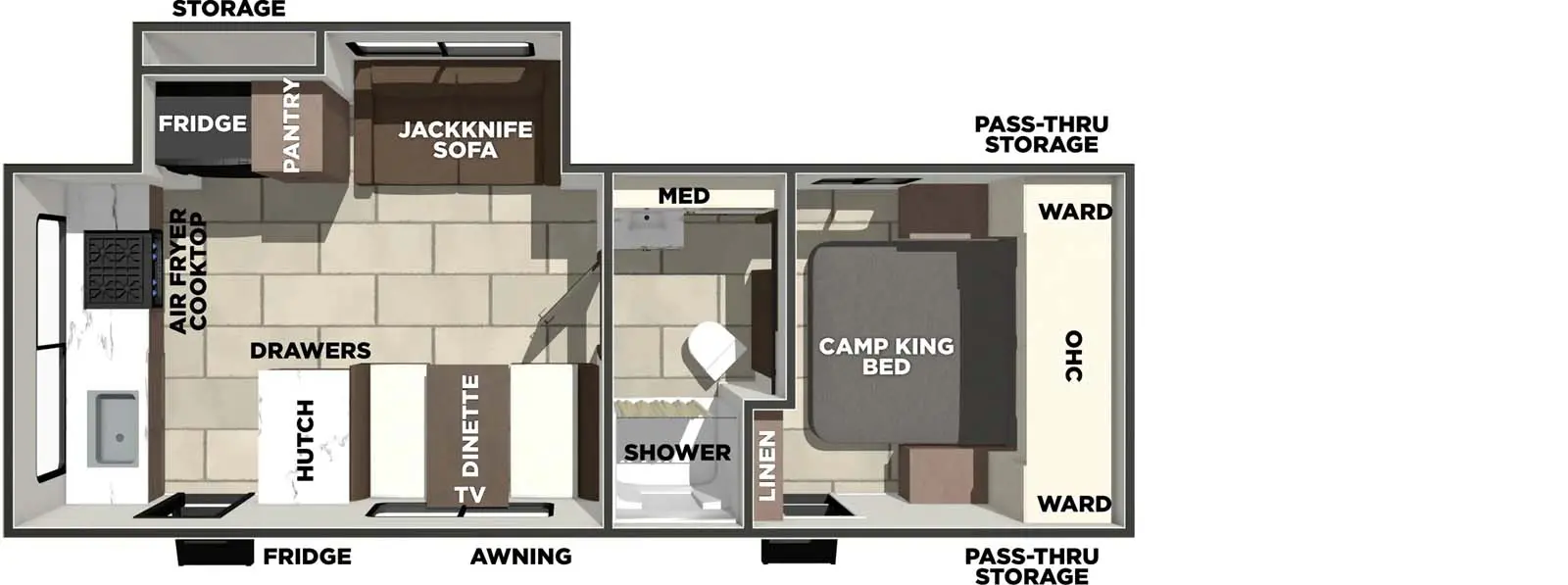

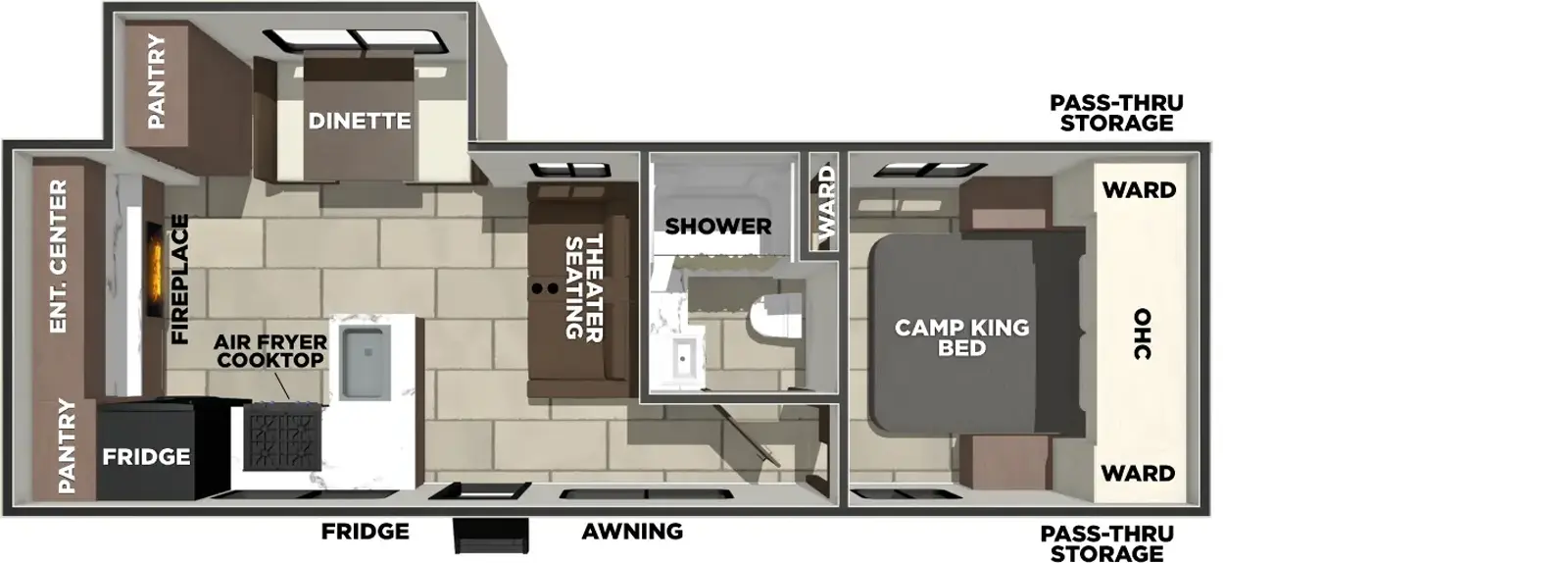

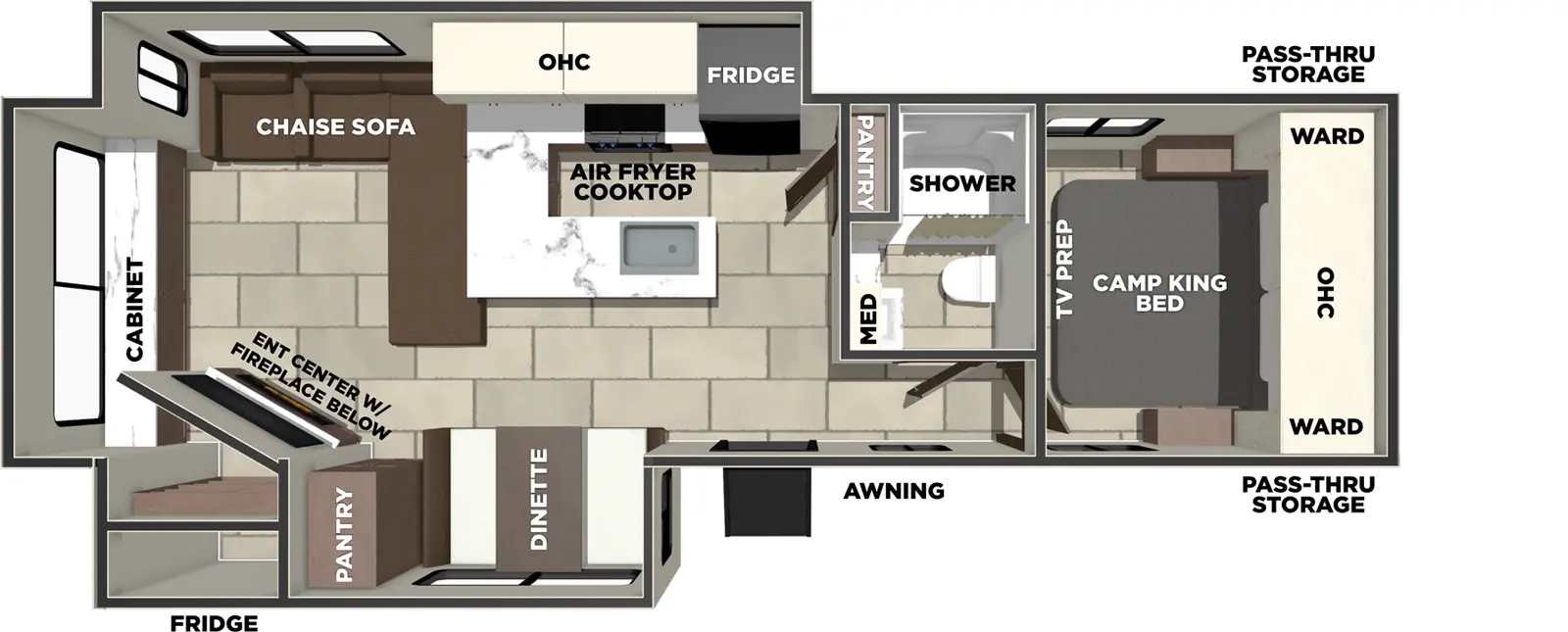

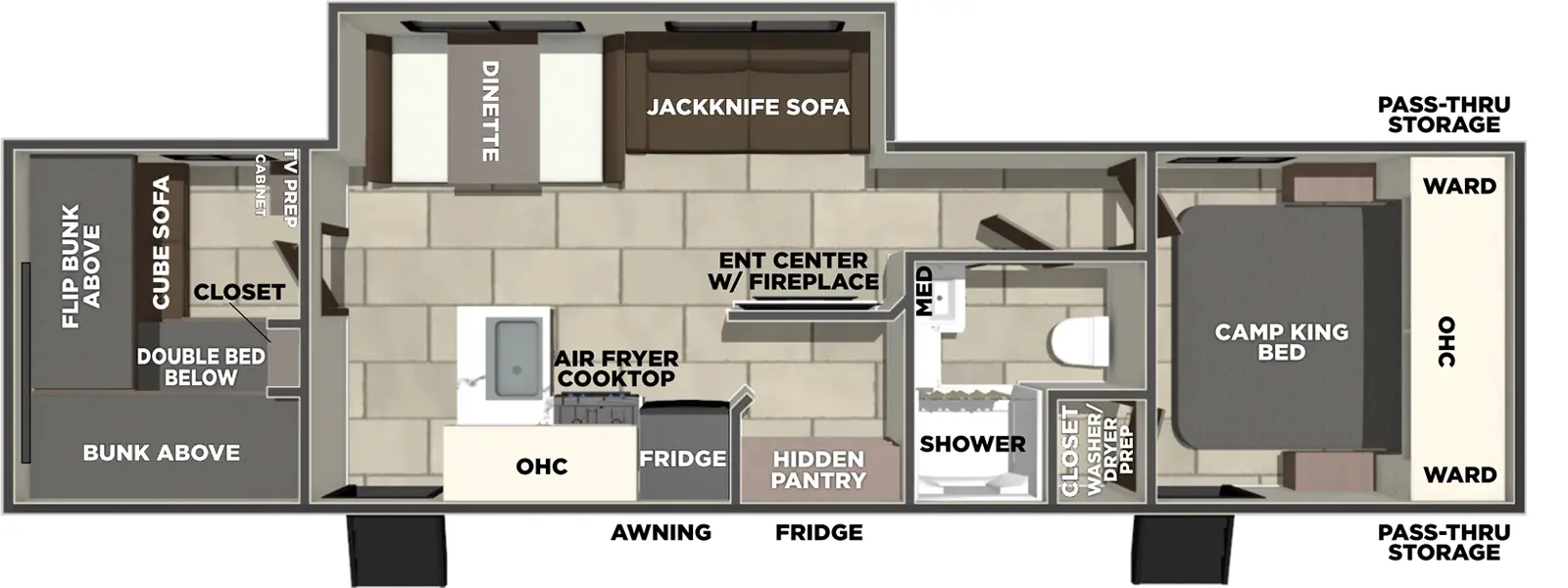

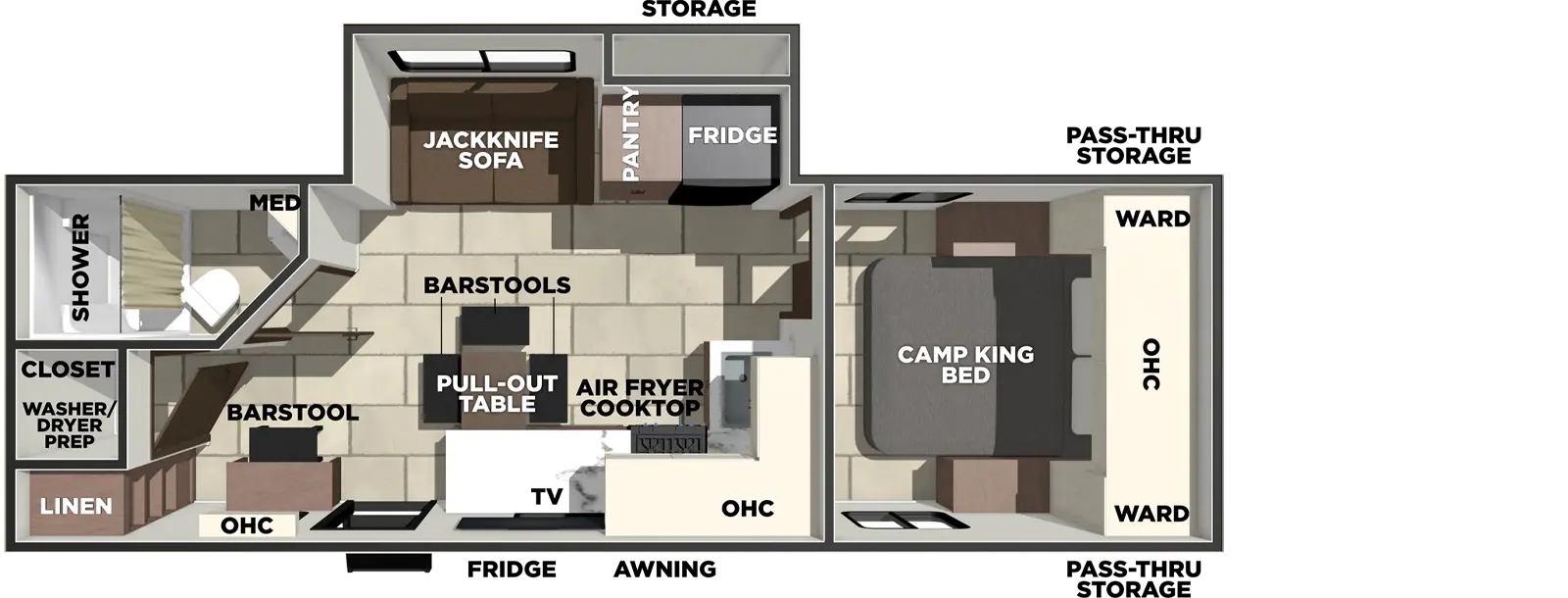

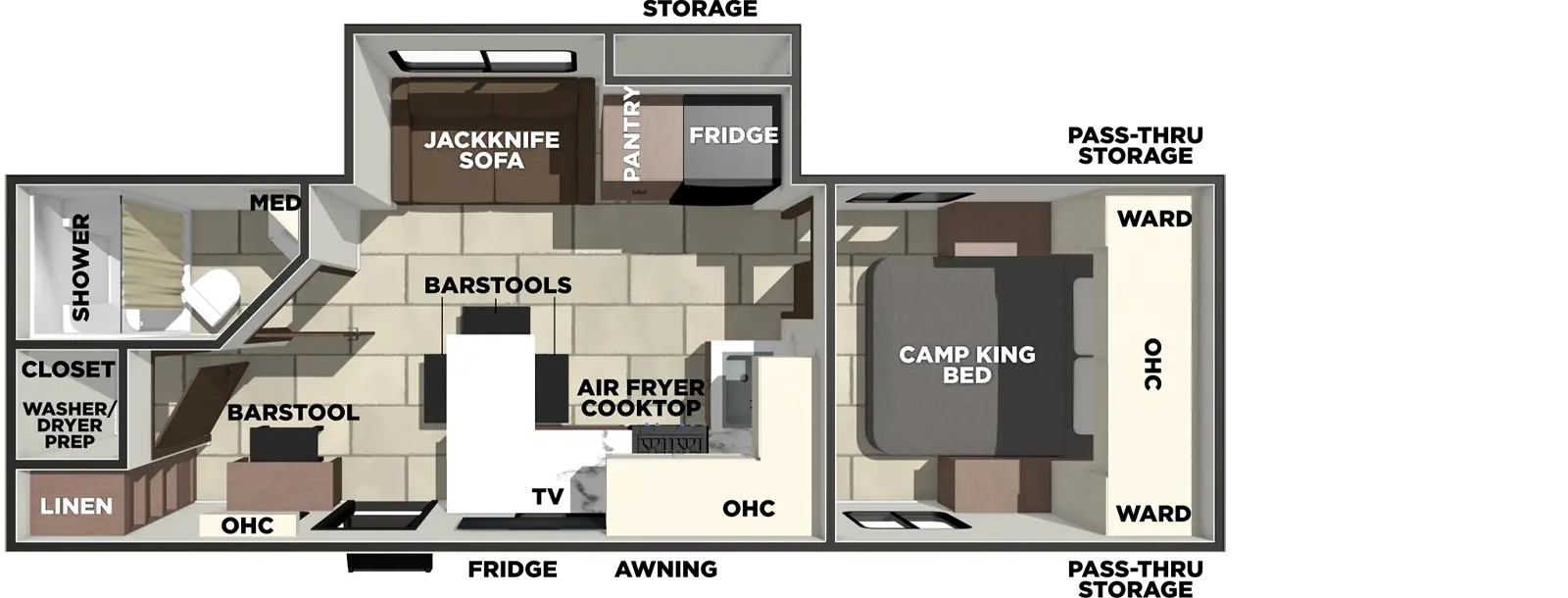

Floorplans

Print

Tracer LE Travel Trailers
Tracer Travel Trailers


Specifications

Print

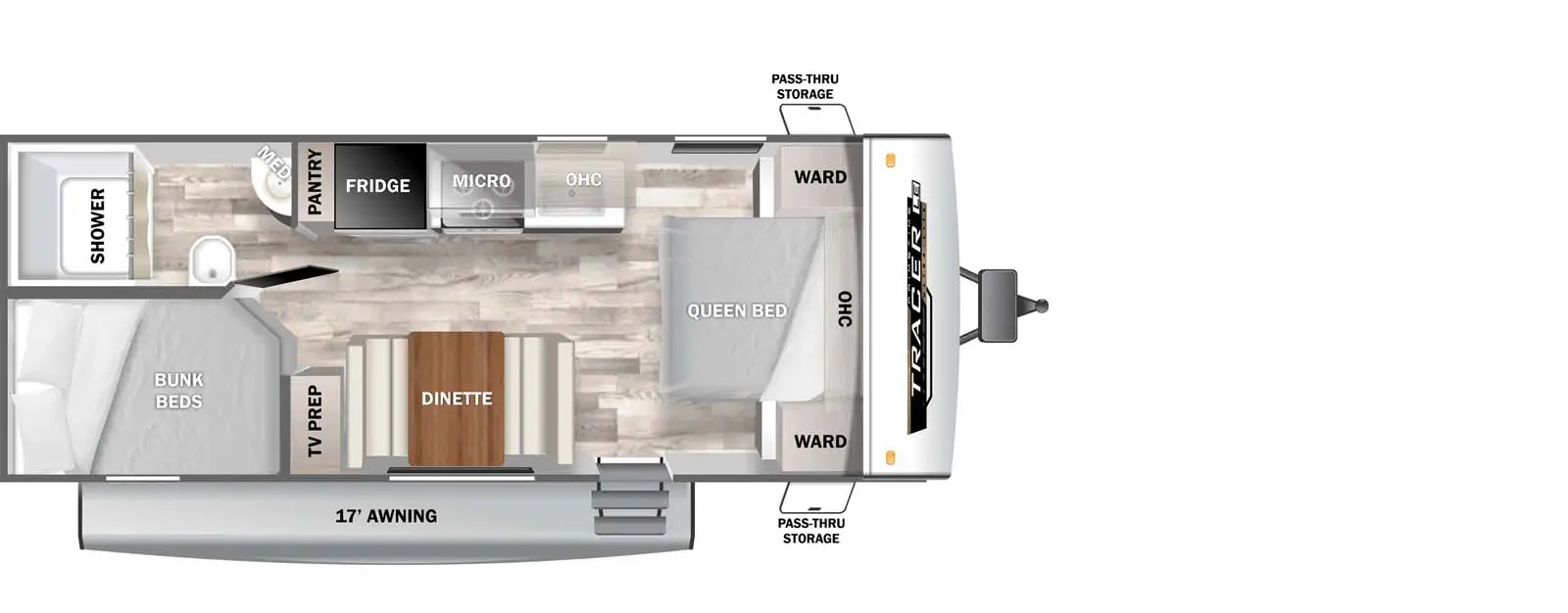

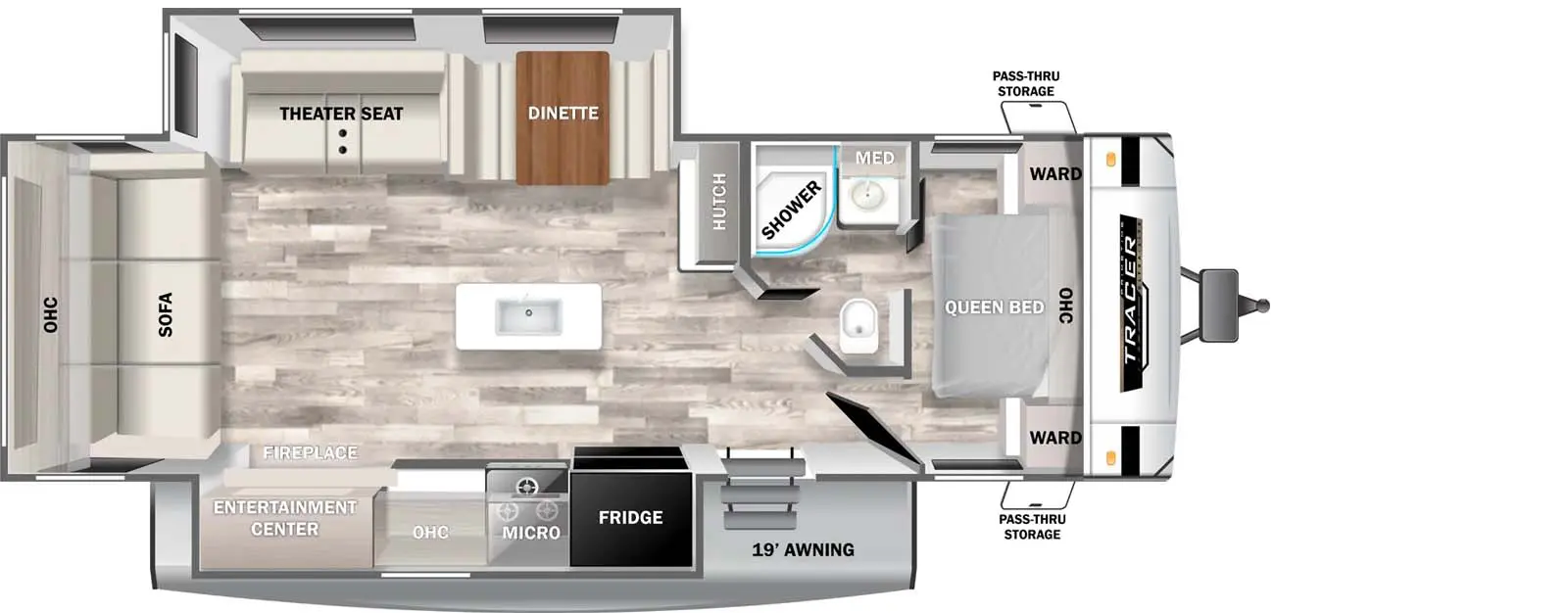

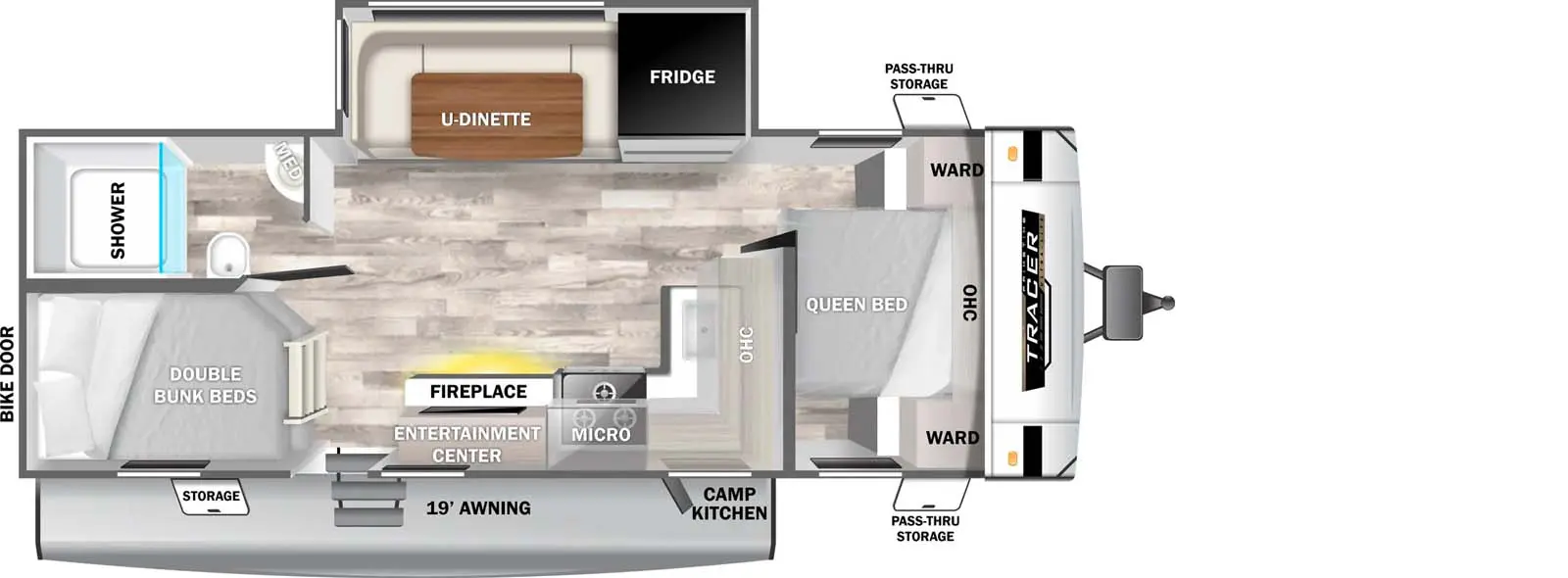

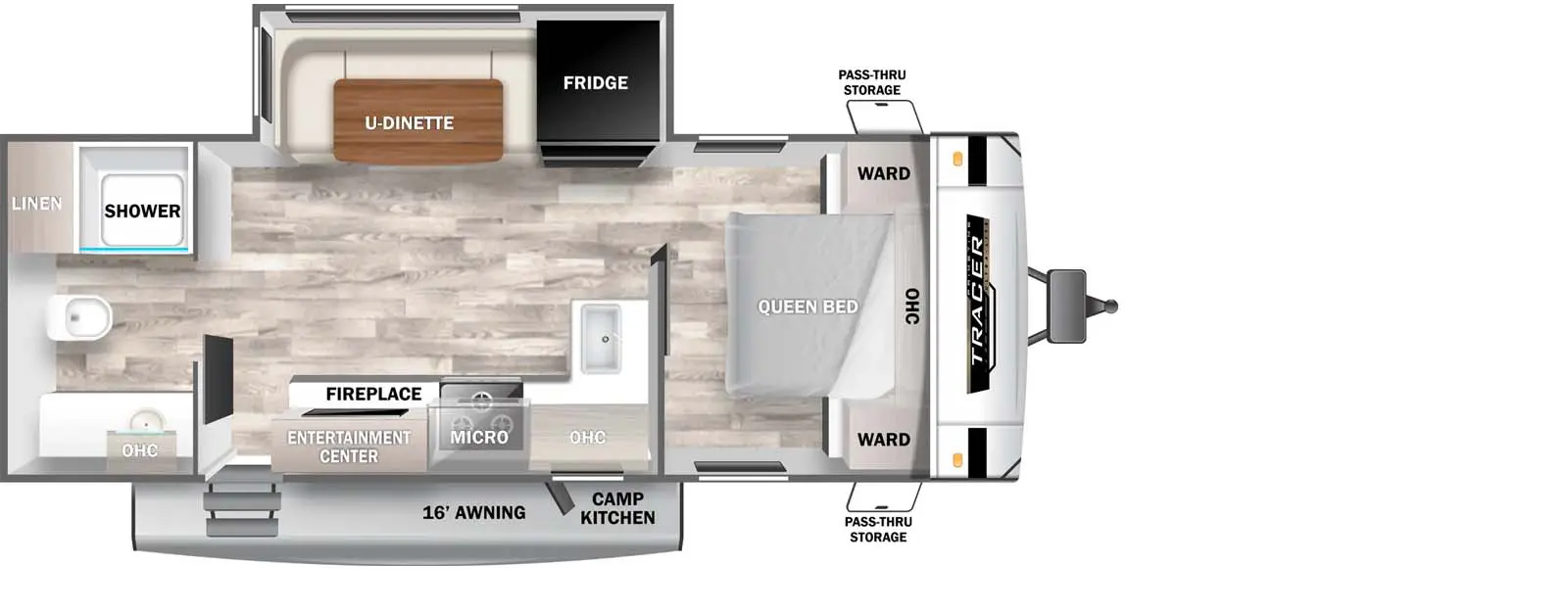

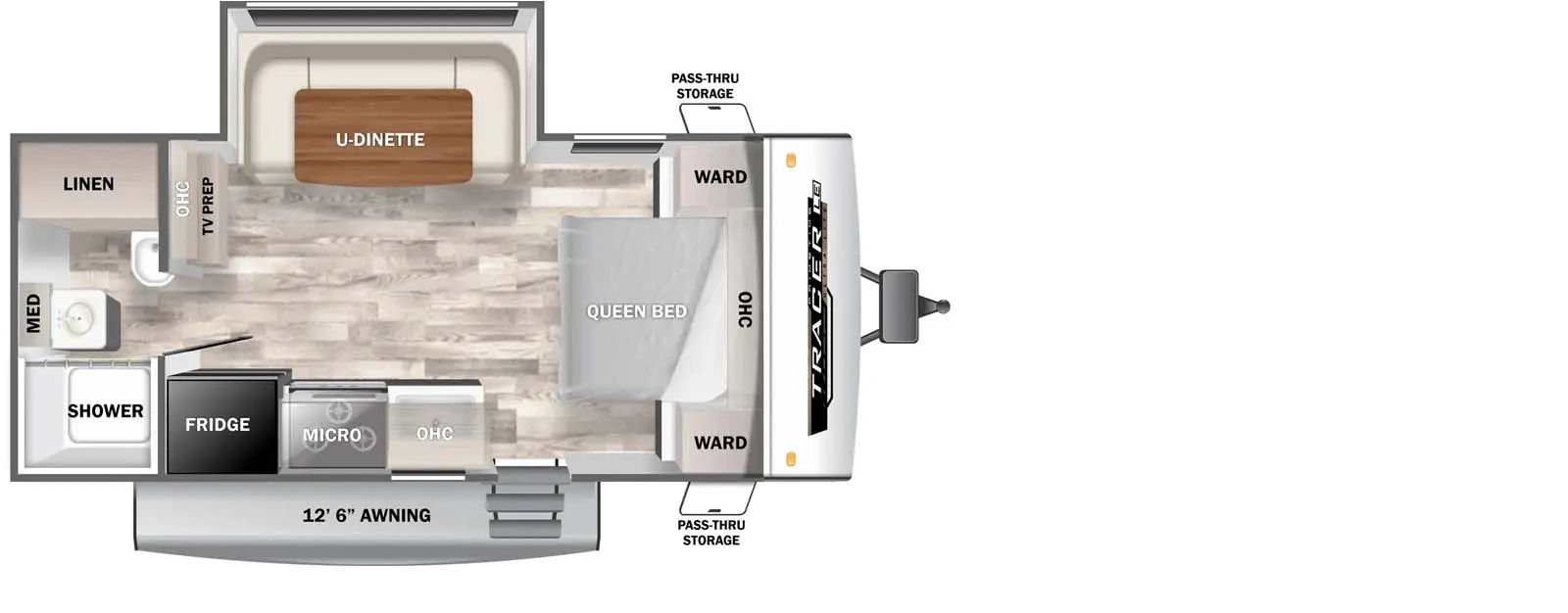

Floorplan: 190RBSLE : Tracer LE Travel Trailers 200BHSLE : Tracer LE Travel Trailers 230BHSLE : Tracer LE Travel Trailers 260BHSLE : Tracer LE Travel Trailers 23RBS : Tracer Travel Trailers 24RKS : Tracer Travel Trailers 25BHS : Tracer Travel Trailers 28BHS : Tracer Travel Trailers 29RLS : Tracer Travel Trailers 31BHD : Tracer Travel Trailers
Hitch Weight:485 lb.450 lb.605 lb.675 lb.675 lb.550 lb.675 lb.770 lb.774 lb.635 lb.
UVW:4,058 lb.4,128 lb.5,003 lb.5,156 lb.5,253 lb.5,338 lb.5,598 lb.6,263 lb.7,126 lb.6,298 lb.
CCC:3,427 lb.3,322 lb.2,597 lb.2,519 lb.2,422 lb.2,212 lb.2,077 lb.1,507 lb.2,448 lb.1,337 lb.
Exterior Length:22' 2"24' 11"27' 8"29' 11"28' 1"28' 11"29' 11"33' 8"33' 11"34' 6"
Exterior Height:10' 7"10' 7"10' 7"10' 7"10' 7"10' 7"TBD10' 8"TBD10' 7"
Exterior Width:96"96"96"96"96"96"96"96"96"96"
Fresh Water:42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.42.00 gal.
Gray Water:34.00 gal.34.00 gal.34.00 gal.34.00 gal.68.00 gal.68.00 gal.68.00 gal.68.00 gal.34.00 gal.30.00 gal.
Black Water:34.00 gal.34.00 gal.34.00 gal.34.00 gal.34.00 gal.34.00 gal.34.00 gal.34.00 gal.34.00 gal.30.00 gal.
Awning Size:12'6"17'19'19'16'19'19'16'TBD19'

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Prime Time Manufacturing RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Prime Time Manufacturing RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Features & Options

Print

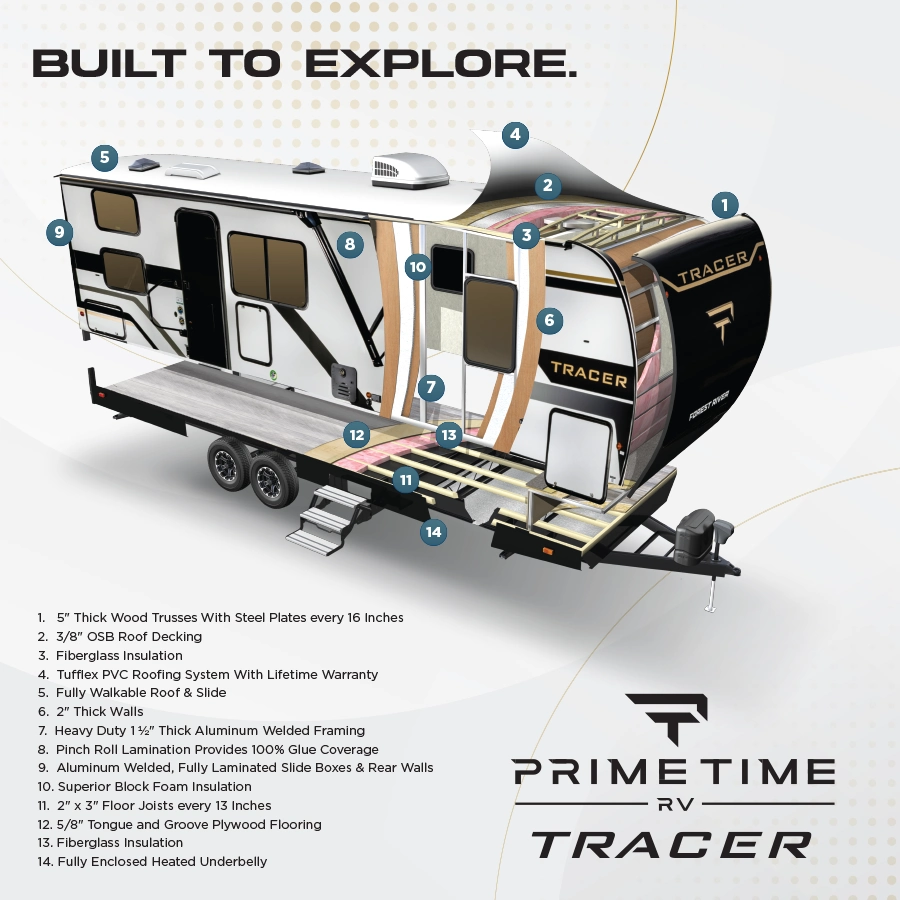

  • Laminated Aluminum Framed Side Walls
  • Laminated Aluminum Framed Rear Walls
  • Laminated Aluminum Framed Main Floor
  • Laminated Aluminum Framed Slideout Walls & Roof
  • 30,000 BTU Furnace
  • Enclosed Underbelly
  • Heated Underbelly by Radiant and Forced Air Heat to Tank Compartment
  • Insulated with Foam Block and Spun Fiberglass Insulation
  • Fiberglass Exterior
  • 3/8″ Roof Decking
  • Snow Load Approved 5” Truss Rafters
  • One Piece TPO Roof Membrane w/12 Year Warranty
  • LED Lit Electric Awning
  • Electric Stabilizer Jacks
  • Power Tongue Jack

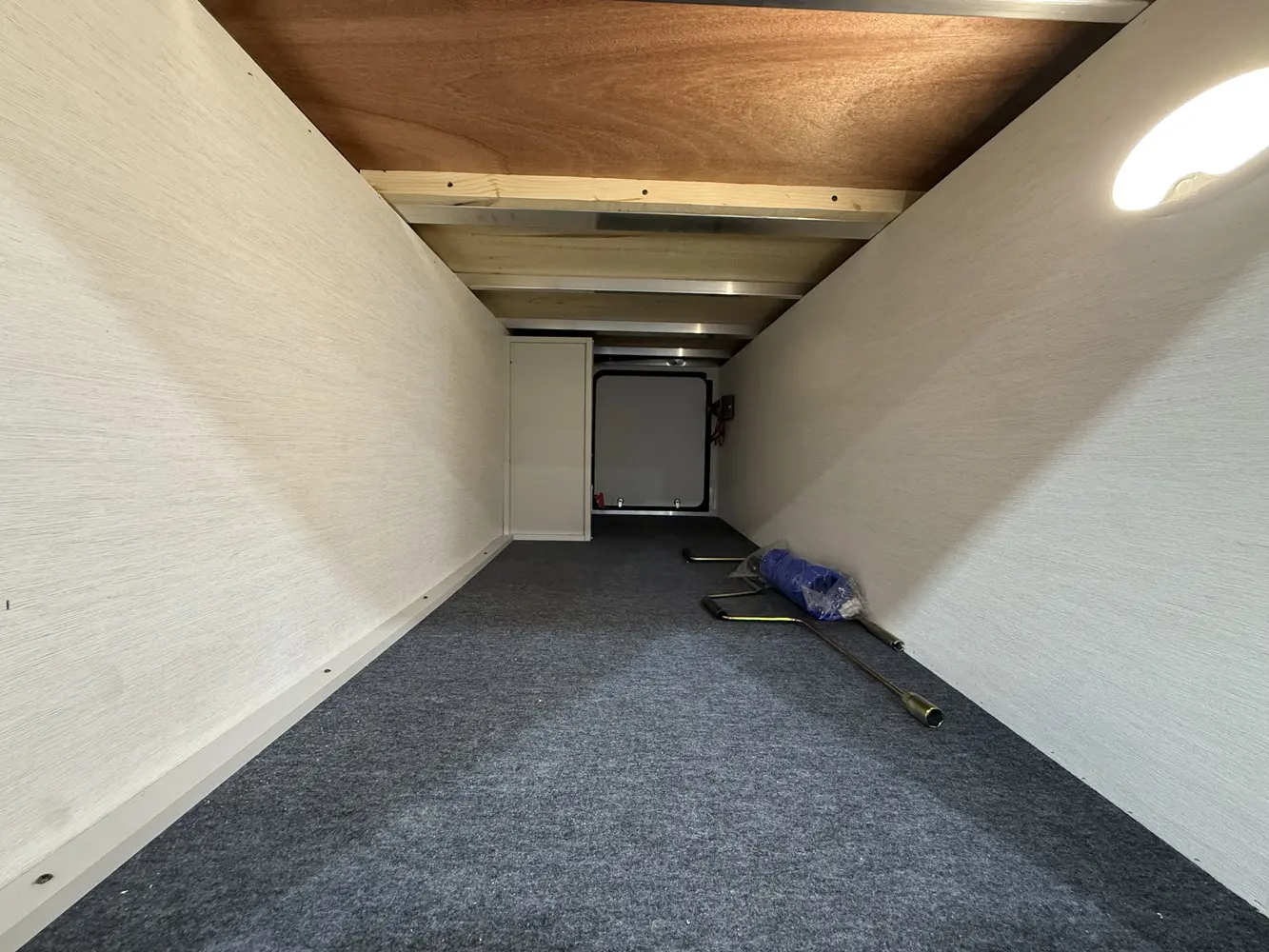

  • Huge Pass Thru Storage
  • 1” Thick Oversized Baggage Doors with Magnetic Catches and Slam Latches
  • Universal Docking Center
  • Battery Disconnect Switch
  • Black Tank Flush
  • Outside Shower with Recoil Hose
  • Solar Prep
  • Observation System / Sideview and Rearview
  • Cable and Satellite Ready
  • Large Fold-Away Grab Handle
  • “Solid Step” Fold Down Entry Steps
  • Spare Tire w/ Carrier
  • Omni Directional TV Antenna
  • Exterior GFI Outlet
  • LP Quick Connect
  • LED Lit Marine Grade Exterior Speakers
  • Aerodynamic Fiberglass Front Cap
  • Front Diamond Plate Rock Guard
  • “E-Z Lube” Greasable Axle Hubs
  • Dexter Axles w/ 5-Year Warranty
  • “D” Rated Radial Tires
  • Extended Drip Spouts
  • Exterior Bottle Opener
  • Doggy D-Ring-Pet Securement
  • Outside Kitchen Cook Center (Select Floorplans)
  • 30 AMP Detachable Power Cord
  • 50 AMP Detachable Power Cord (Select Models)
  • LED TVs (N/A to LE models)
  • LED Lighting Throughout w/Motion Sensor Lights In Key Locations
  • Soundbar
  • Shaker Style Cabinet Doors
  • Pre-drilled And Screwed Cabinetry
  • Solid Wood Core Cabinetry
  • Brushed Nickel “J” Spout Kitchen Faucet
  • Stainless Steel Galley Sink (N/A to LE models)
  • Solid Surface Galley Countertops (N/A to LE models)

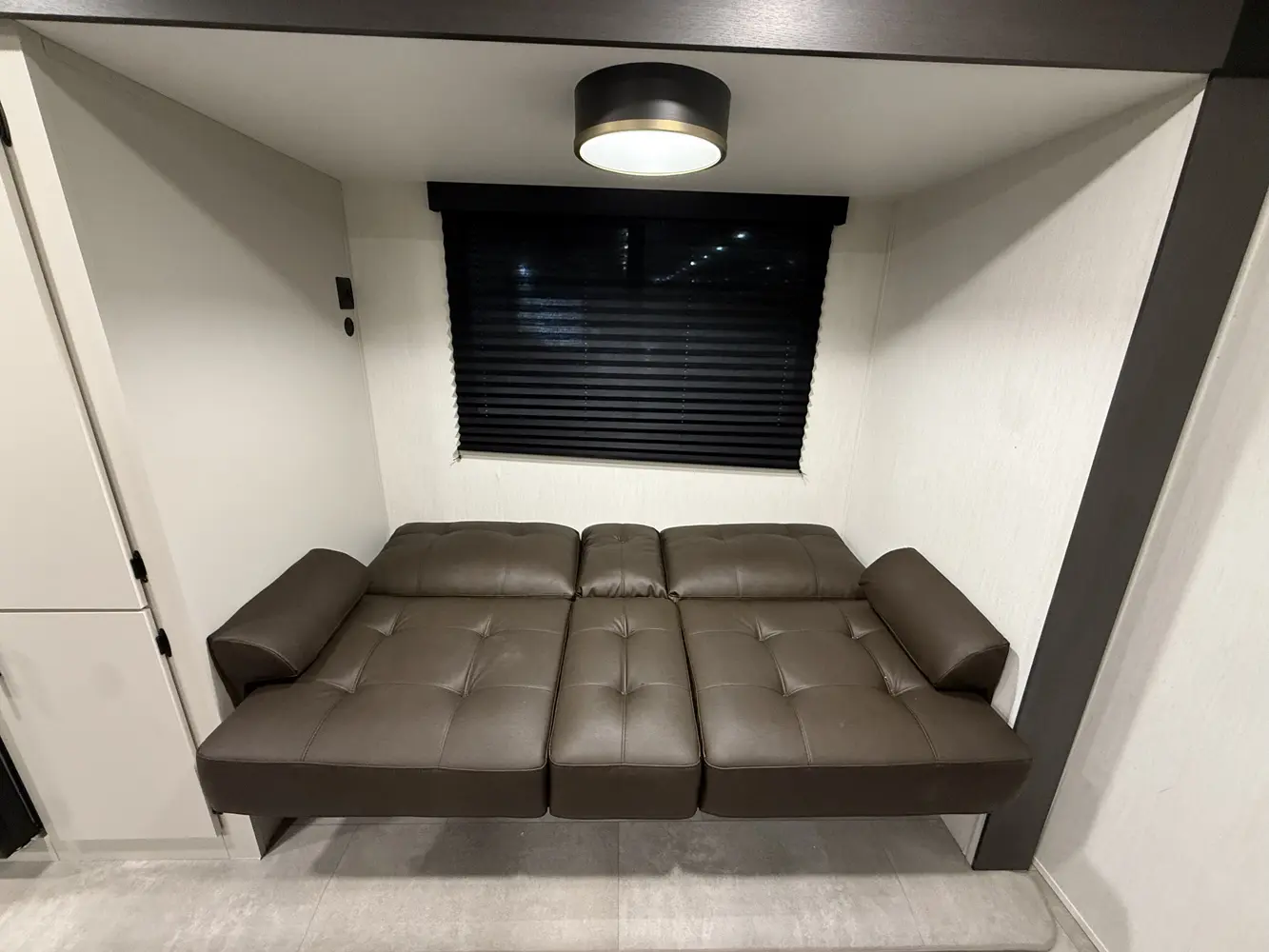

  • Residential Hide-A-Bed Sofa (Most Models)
  • Extended Height Toilet w/Foot Flush
  • Large Medicine Cabinet
  • Shower Surround
  • Skylight Above Shower (Most Models)
  • 12V Exhaust Fan in Bath
  • 60"x80" Queen Size Mattress (N/A to LE models)

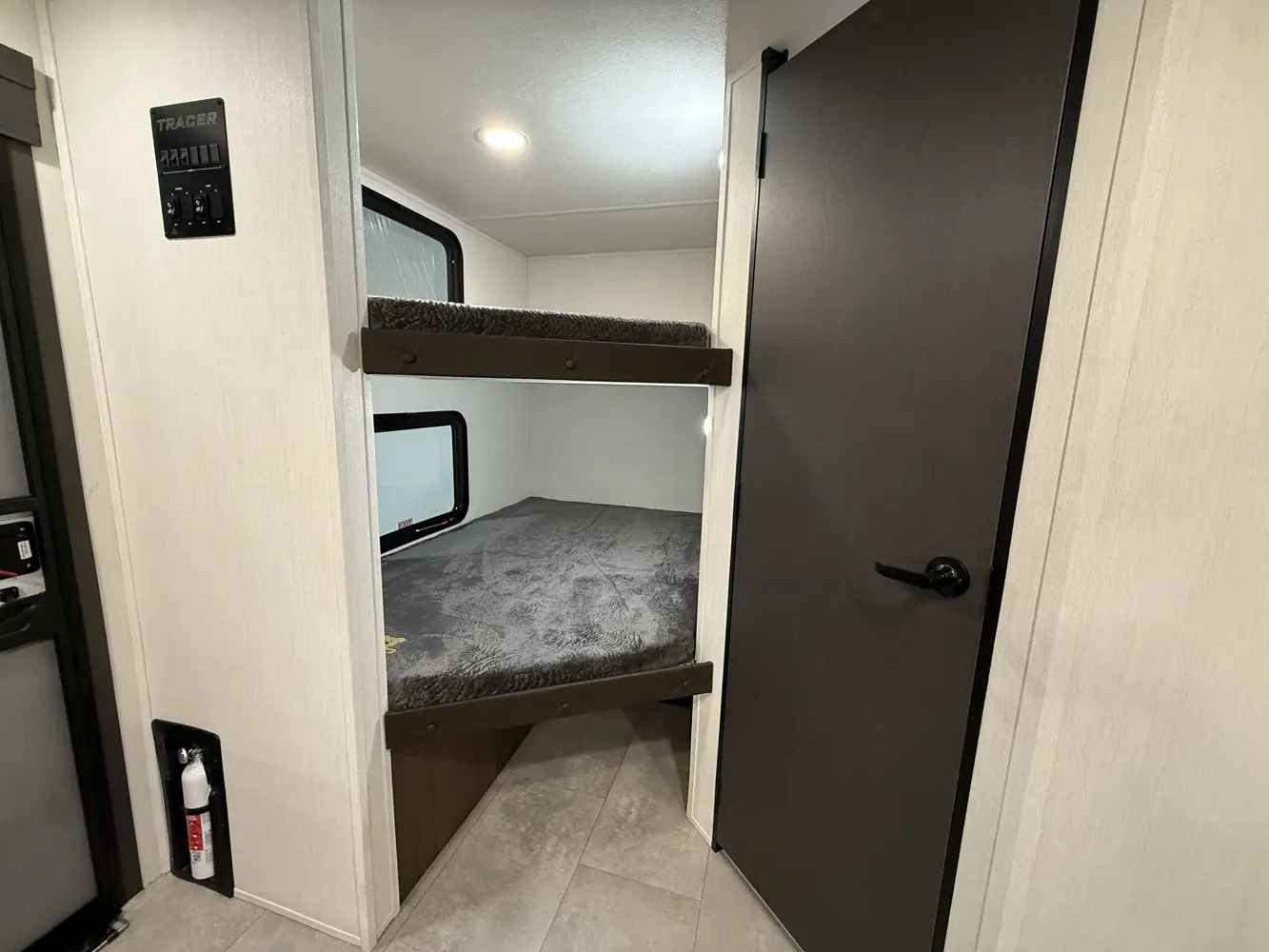

  • Teddy Bear Bunk Mats (Where Applicable)
  • Residential Bedspread (N/A to LE models)

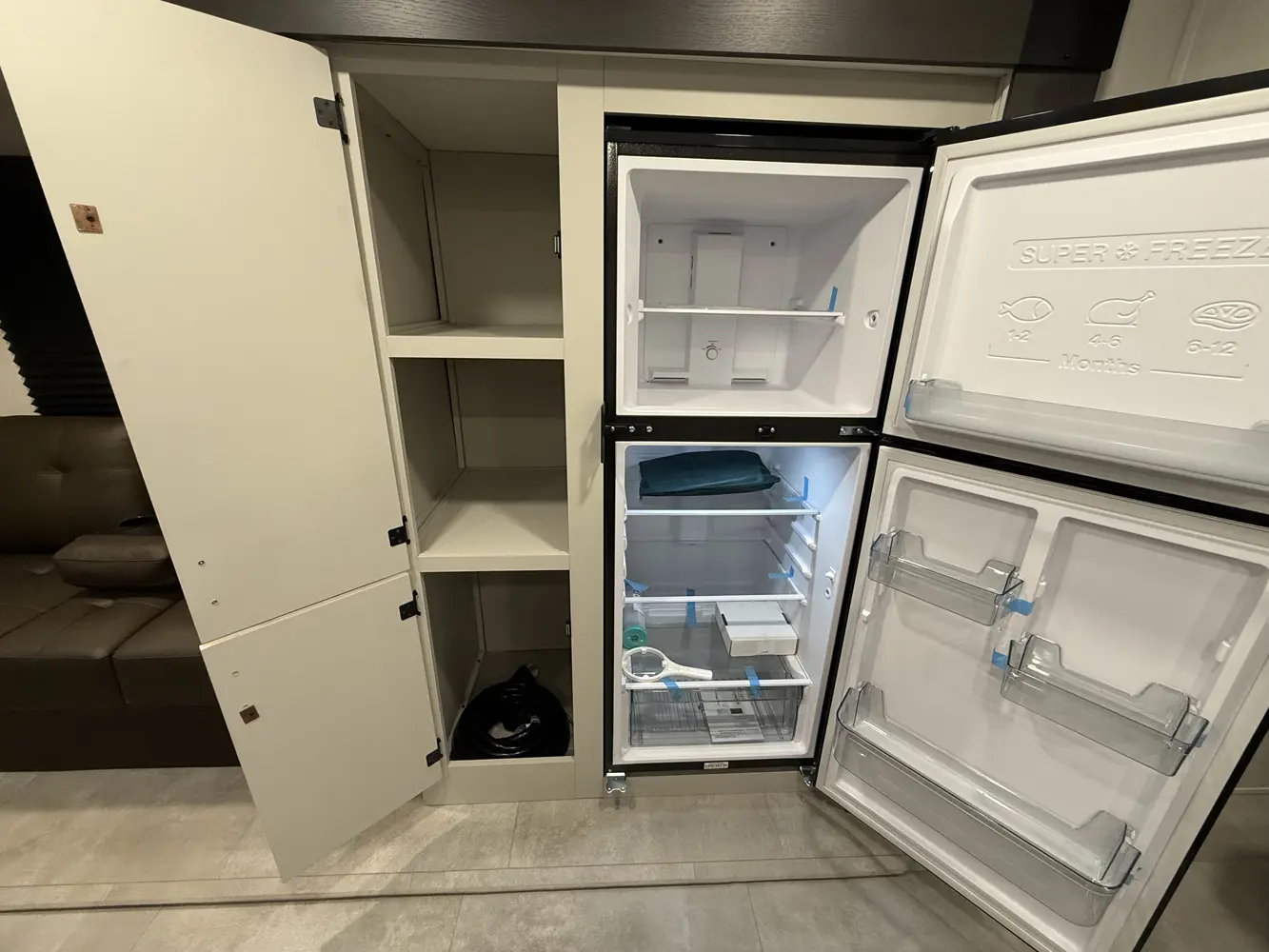

  • Large 2-Door Refrigerator
  • 14,500 BTU Ducted A/C
  • 6 Gallon Gas/Electric Water Heater
  • 18 Gallon /Hour Quick Recovery Mode for Water Heater
  • 30,000 BTU Furnace
  • 3-Burner Gas Cooktop with Oven
  • Microwave
  • Range Hood w/Light
  • Water Heater Bypass
  • High Capacity Water Pump
  • CO Detector
  • LP Detector
  • Fire Extinguisher
  • Dual Hitch Safety Chains
  • Smoke Alarm
  • ETERNABOND® CONSTRUCTION
  • Fiberglass Front Cap
  • Fully Enclosed Underbelly
  • Gas/Electric DSI Water Heater
  • Spare Tire with Carrier
  • XL Grab Handle
  • Solid Stance Entry Steps
  • Universal Docking Station
  • Outside Shower
  • Battery Disconnect
  • Power Awning with LED Lighting
  • Solar Prep
  • Back Up Camera Prep
  • Slam Latch Baggage Doors
  • Residential 60x80” Queen Bed
  • Eternabond Construction
  • Gas/Electric DSI Water Heater
  • Spare Tire w/Carrier
  • Steel Wheels
  • XL Grab Handle
  • Steel Entry Steps
  • Manual Stabilizer Jacks
  • Manual Tongue Jack
  • Power Awning w/LED lights
  • Solar Prep
  • Back Up Camera Prep
  • TV Prep
  • Soundbar
  • 2 in 1 Gas Oven and Range
  • LED Interior Lighting
  • Power Tongue Jack
  • Power Stability Jacks
  • Deluxe Graphics Package
  • Observation System Prep
  • Tire Pressure Monitoring System
  • WiFi Booster/4G Prep
  • Tracer Switch Panel
  • Solid Surface Countertops
  • Undermount Stainless Steel Kitchen Sink
  • Low Profile Range Hood
  • High Definition Soundbar

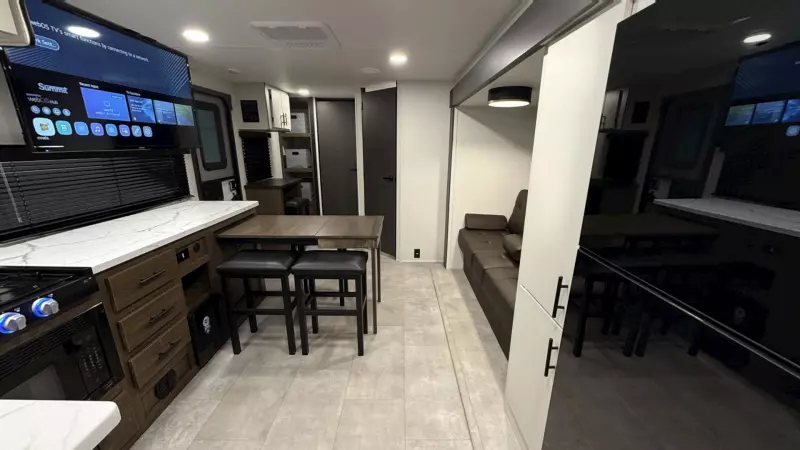

Virtual Tours

  • 190RBSLE
    190RBSLE Main Room
  • 200BHSLE
    200BHSLE Main Room
  • 230BHSLE
    230BHSLE Main Room
  • 23RBS
    23RBS Main Room

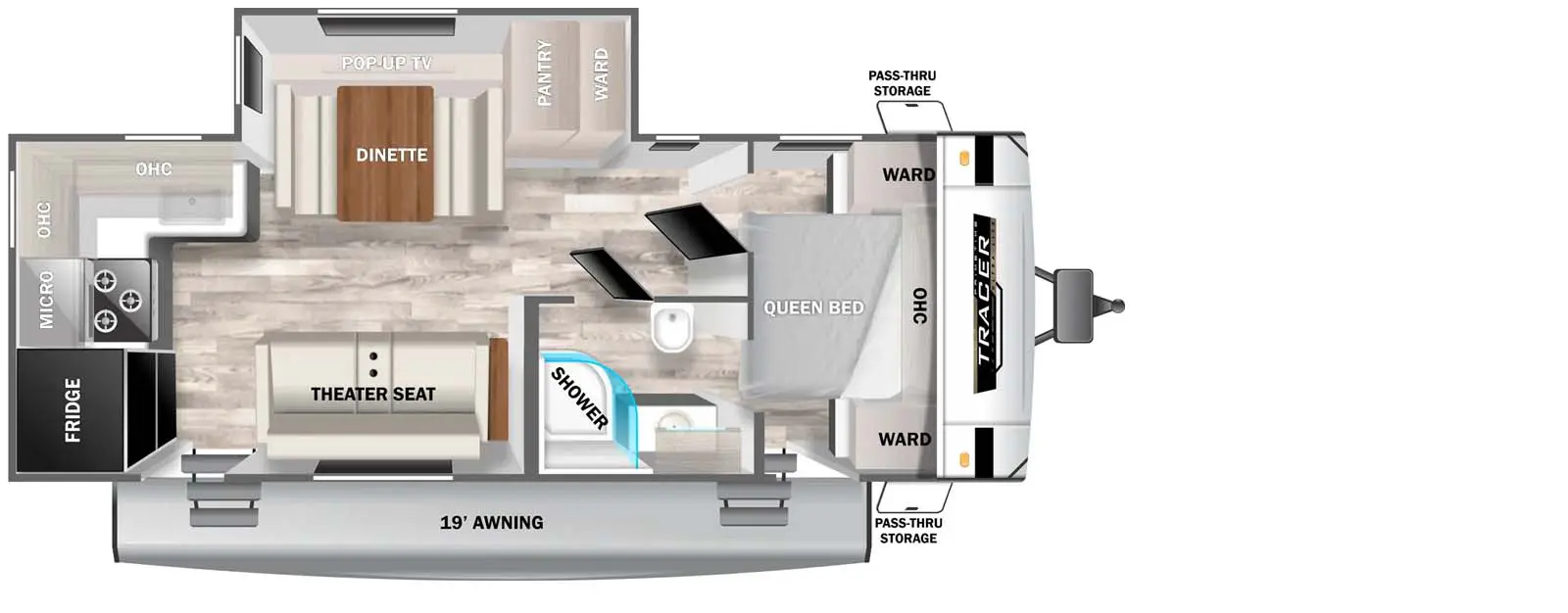

  • 24RKS
    24RKS Main Room
  • 25BHS
    25BHS Main Room
  • 260BHSLE
    260BHSLE Main Room
  • 29RLS
    29RLS Main Room
  • 31BHD
    31BHD Main Room
