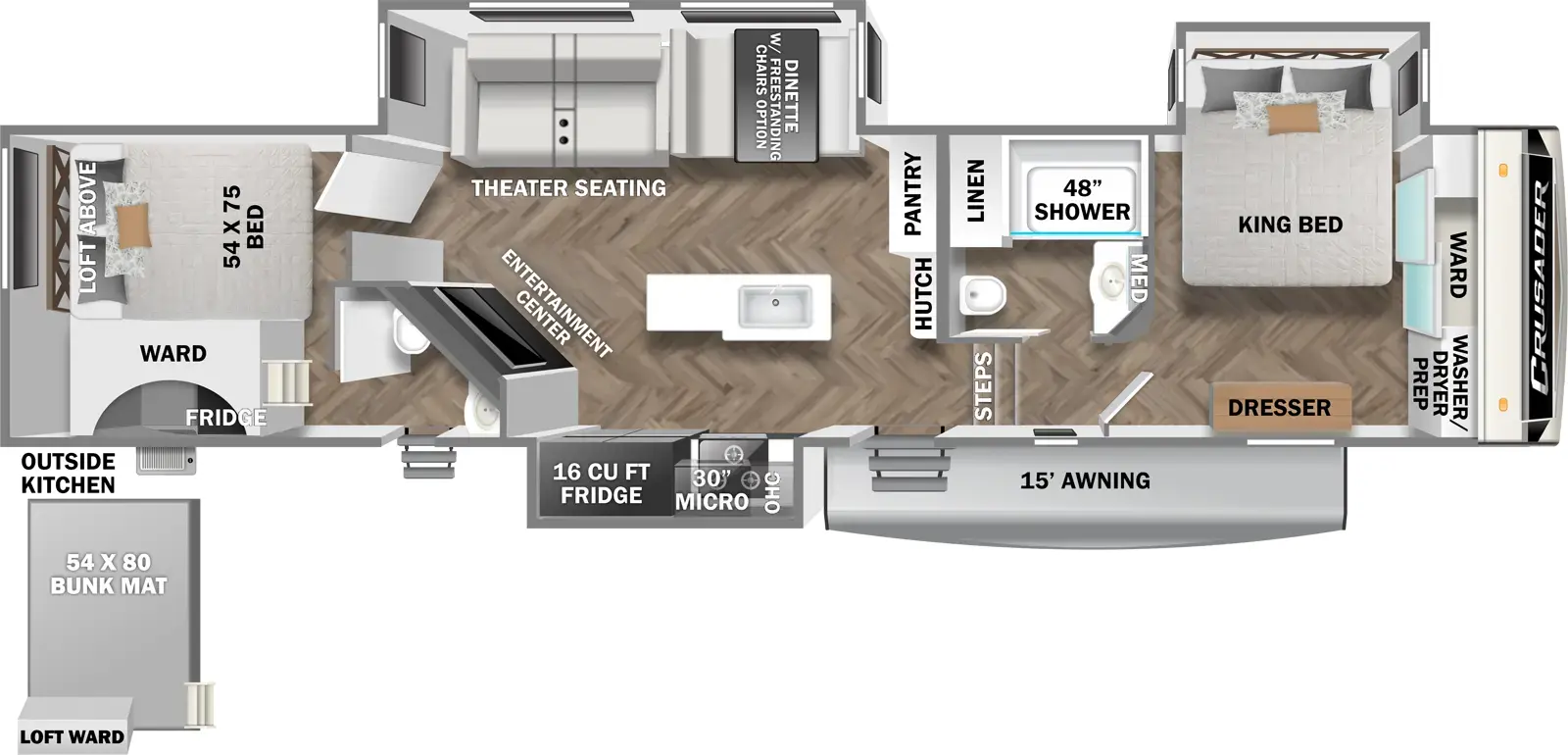

Crusader 395BHL Floorplan

The 395BHL is a two-bedroom unit with an extra half bath PLUS a bonus loft! The loft bedroom is located in the rear, away from the main bedroom for extra peace and quiet. This area also has its own entry door for additional convenience. The central living area includes an entertainment center, theater seating, and an island kitchen with residential appliances, hutch with pantry, and a free-standing dinette option. The front bedroom is extra roomy thanks to a slideout, and features a king bed.

Hitch Weight
2,175 lb.
GVWR
14,175 lb.
UVW
11,909 lb.
CCC
2,266 lb.
Exterior Length
41' 10"
Exterior Height
13' 1"
Exterior Width
96"
Fresh Water
54 gal.
Gray Water
73 gal.
Black Water
73 gal.
Awning Size
15'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Crusader Full-Profile & Half-Ton Features & Options

    • <strong>Construction</strong>
    • Eternabond Construction: Five-Sided Lamination with High Density Block Foam Insulation, Laminated Aluminum Framed Side Walls, Laminated Aluminum Framed Rear Wall, Laminated Aluminum Framed Main Floor, Laminated Slide Walls and Slide Roof, Fully Walkable Slide Rooms, Full Double Welded Framing
    • Comprehensive Customer Assurance Inspection
    • One Piece PVC Roof Membrane
    • 5" Truss Rafters with 3/8" WALK ON Roof Decking
    • Double Trussed Roof Construction
    • Enclosed Dump Valves
    • Aluminum Studs, Stuffed with Wood for Greater Screw Retention
    • Radiant Foil Insulation
    • Fully Glued Linoleum Floors
    • Double Wiper Slide Seals from Jager
    • Rack & Pinion Slide Systems
    • <strong>Premium Exterior Standards</strong>
    • High Gloss Gel Coated Exterior Fiberglass
    • Rubberized Liner in Pass Through Storage
    • Molded High Gloss Gel Coat Front Cap with LED Lights
    • Dexter Leaf Spring Axles
    • Dexter "E-Z LUBE" Axle Hubs
    • Dexter "E-Z FLEX" Rubberized Suspension Equalizer
    • One-Touch Auto Leveling
    • Thick Insulated Pass-Through Baggage Doors
    • Dark Tinted Radius Safety Glass Windows
    • Dual 30 lb. LP Bottles – Weight Distribution Design
    • Exterior Camp Kitchen (select models)
    • Quick Connect Exterior LP Connection
    • Upgraded 50W iRV Exterior Speaker
    • XL Folding Grab Handle
    • 30" Radius Friction Hinge Entry Door
    • Doggy D-Ring
    • Bottle Opener
    • Outside Television Hook-Up
    • 16" Aluminum Wheels
    • Electric Awning with LED lighting
    • Roof Ladder Standard
    • 4" Rear Bumper
    • Easy Access Spare Tire
    • Detachable Power Cord
    • 50 AMP Electrical Service
    • Labeled Universal Docking Center
    • <strong>Extreme Thermal Package</strong>
    • High Density Block Foam Insulation Throughout
    • Enclosed and Heated Underbelly
    • Enclosed and Heated Dump Valves
    • Heated Basement Storage
    • Radiant Foil Insulation
    • Zero Degree Extended Season Enjoyment
    • <strong>Premium Internal Standards</strong>
    • Dual 15,000 BTU Air Conditioners, optimized on H track ducting
    • Yamaha Sound Bar with Built-in Subwoofer
    • Residentially Inspired Kitchen Appliances
    • Heat Rated Solid Surface Countertops
    • Real Wood Cabinet Doors
    • Lumber Core Cabinets
    • Predrilled and Screwed Cabinetry
    • Soft Close Doors and Drawers
    • Winegard 360+ 5G Antenna (Includes Wi-Fi Prep)
    • Carpet-Less Slide Rooms
    • Large Panoramic Slide Room Windows (select models)
    • Blackout Roller Shades
    • Stain Resistant, Easy Clean Vinyl Furniture
    • Designer Carefree Linoleum with Scotchgard® Technology
    • Illuminated Lighting Package
    • Residential Hide-A-Bed Sofa
    • Theater Seating with Cupholders and USBs (select models)
    • Large LED Smart TV (Select Models)
    • Booth Dinette with Storage OR Free-Standing Chairs
    • <strong>Kitchen</strong>
    • Heat Rated Solid Surface Countertops
    • Routed Kitchen Backsplash
    • Painted Wood Cabinetry
    • Deep, Single Bowl Stainless Steel Sink
    • Roll-Up, Easy Store Stainless Steel Sink Cover
    • High Rise Faucet
    • 30" Residential Style Microwave
    • 21” Stainless-Steel Greystone Oven/Cook Top
    • 16 Cubic Foot French Door Refrigerator (12V)
    • <strong>Bathroom</strong>
    • King Size Shower with Seat
    • Glass Sliding Doors
    • One-Piece Fiberglass Shower Enclosure (Bed-Slide Models)
    • Deluxe Skyview® Skylight
    • Power Vent Fan
    • Foot Flush Porcelain Toilet
    • Medicine Cabinet with Mirror
    • Designated Linen Closet
    • Pocket Door for Easy Entry
    • Surge Protected GFCI Outlet
    • Ducted Heating and A/C Vents
    • <strong>Bedroom</strong>
    • Dual Wardrobes (select models)
    • Deep Closet with Stackable Washer/Dryer Prep (Bed Slide Models)
    • King Size Bed (select models)
    • Underbed Storage with Struts
    • Residential Bedspread
    • Ducted Heat Vents
    • Ducted 15,000 BTU A/C
    • USB and USB-C Ports
    • Convenient Bedroom Outlets
    • Cubby Holes and Nightstands
    • <strong>Appliances/Equipment</strong>
    • Dual 15,000 BTU A/C Combo
    • 35,000 BTU High-Capacity Gas Furnace
    • 30" Residential Microwave
    • 16 Cubic Foot French Door Refrigerator (12V)
    • Tankless On-Demand Water Heater
    • Water Heater Bypass
    • High-Capacity 12V Water Pump
    • EZ Winterization Hook-Up
    • Roof-Mounted 200W Solar Panel
    • 30 Amp Charge Controller
    • <strong>Safety Equipment</strong>
    • CO Detector
    • LP Detector
    • Fire Extinguisher
    • Propane Alarm
    • Smoke Alarm
    • TST Banded Tire Pressure Monitor System STANDARD
    • Deadbolt Lock in Entry Door
    • Lockable Slam-Latch Baggage Doors
    • 4" Rear Bumper
