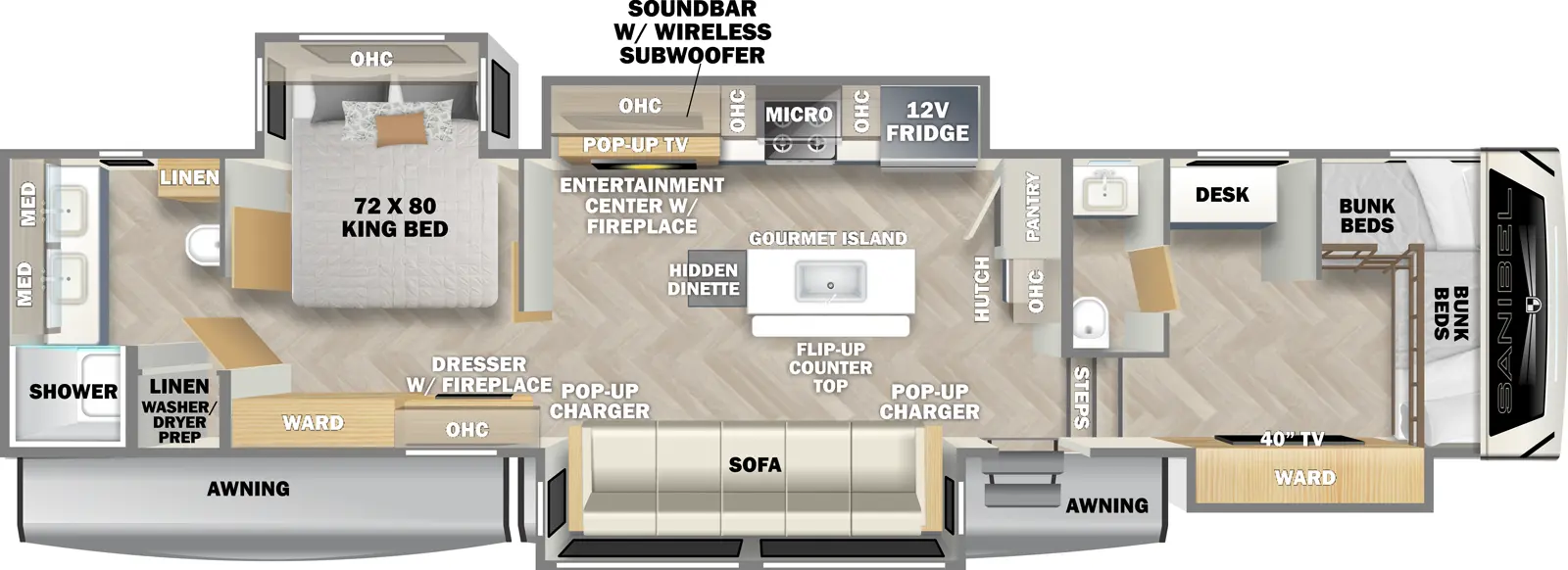

Sanibel 3952FBWB Floorplan

Hitch Weight
2,362 lb.
GVWR
16,362 lb.
UVW
12,875 lb.
CCC
3,487 lb.
Exterior Length
46' 2"
Exterior Height
13' 1"
Exterior Width
100"
Fresh Water
54 gal.
Gray Water
78 gal.
Black Water
78 gal.
Awning Size
12' & 18'

Specifications Definitions

GVWR (Gross Vehicle Weight Rating) – is the maximum permissible weight of the unit when fully loaded. It includes all weights, inclusive of all fluids, cargo, optional equipment and accessories. For safety and product performance do NOT exceed the GVWR.

GCWR (Gross Combined Weight Rating) – is the maximum permissible loaded weight of your motor home and any towed trailer or towed vehicle. Actual GCWR of this vehicle may be limited by the sum of the GVWR and the installed hitch receiver maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) – is the maximum permissible weight, including cargo, fluids, optional equipment and accessories that can be safely supported by a combination of all axles.

UVW (Unloaded Vehicle Weight)* – is the typical weight of the unit as manufactured at the factory. It includes all weight at the unit’s axle(s) and tongue or pin and LP Gas. The UVW does not include cargo, fresh potable water, additional optional equipment or dealer installed accessories.
*Estimated Average based on standard build optional equipment.

CCC (Cargo Carrying Capacity) ** – is the amount of weight available for fresh potable water, cargo, additional optional equipment and accessories. CCC is equal to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs per gallon). Before filling the fresh water tank, empty the black and gray tanks to provide for more cargo capacity.
**Estimated Average based on standard build optional equipment.

Each Forest River RV is weighed at the manufacturing facility prior to shipping. A label identifying the unloaded vehicle weight of the actual unit and the cargo carrying capacity is applied to every Forest River RV prior to leaving our facilities.

The load capacity of your unit is designated by weight, not by volume, so you cannot necessarily use all available space when loading your unit.

Actual towing capacity is dependent upon your particular loading and towing circumstances, which includes the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the Operator's Manual of your vehicle for further towing information.

Note: Specifications are subject to change without notice.



  • Construction

    • High Gloss Gel Coat Fiberglass Exterior
    • Automotive Grade Painted Front Cap
    • One Piece PVC Roof Membrane
    • Comprehensive Customer Assurance Inspection
    • 5" Truss Rafters with 3/8" WALK ON Roof Decking
    • Easy Access Low Point Drains
    • Easy Access Fresh Water Drains
    • Aluminum Studs, Stuffed with Wood for Greater Screw Retention
    • Complete Double Welded Framing
    • Rugged Liner in Pass Through Storage
    • Radiant Foil Insulation
    • Fully Glued Linoleum Floors
    • Double Wiper Slide Seals from Jager
    • Rack & Pinion Slide Systems

  • Eternabond Construction

    • Five-Sided Lamination with High Density Block Foam Insulation
    • Laminated Aluminum Framed Side Walls
    • Laminated Aluminum Framed Rear Wall
    • Laminated Aluminum Framed Main Floor
    • Laminated Slide Walls and Slide Roof
    • Fully Walkable Slide Rooms

  • Extreme Thermal Package

    • High Density Block Foam Insulation Throughout
    • Enclosed Underbelly
    • 12V Heating Pads on Tanks and Elbow Joints
    • Enclosed and Heated Dump Valves
    • Heated Basement Storage
    • Radiant Foil Insulation
    • Zero Degree Extended Season Enjoyment

  • Premium Internal Standards

    • Triple 15,000 BTU Air Conditioners, optimized on H track ducting
    • Residentially Inspired Kitchen Appliances
    • Real Wood Cabinet Doors
    • Lumber Core Cabinets
    • Predrilled and Screwed Cabinetry
    • Soft Close Doors and Drawers
    • Winegard 360+ 5G Antenna (Includes Wi-Fi Prep)
    • Carpet-Less Slide Rooms
    • Large Panoramic Slide Room Windows (select models)
    • Blackout Roller Shades
    • Stain Resistant, Easy Clean Vinyl Furniture
    • Designer Carefree Linoleum with Scotchgard® Technology
    • Illuminated Lighting Package
    • Residential Hide-A-Bed Sofa
    • Theater Seating with Cupholders and USBs (select models)
    • Large LED Smart TV
    • Yamaha Sound Bar with Built-in Subwoofer
    • Booth Dinette with Storage OR Free-Standing Chairs
    • Floating Steps for Added Storage

  • Kitchen

    • Heat Rated Solid Surface Countertops Throughout Entire Coach
    • Real Tile Kitchen Backsplash
    • Painted Wood Cabinetry
    • Deep, Single Bowl Stainless Steel Sink
    • Roll-Up, Easy Store Stainless Steel Sink Cover
    • High Rise Faucet
    • 30" Residential Style Microwave
    • 24" Stainless-Steel Oven
    • 4-Burner Cook Top
    • 16 Cubic Foot French Door Refrigerator (12V)

  • Bathroom

    • King Size Shower with Seat
    • Glass Sliding Doors
    • One-Piece Fiberglass Shower Enclosure (Select Models)
    • Deluxe Skyview® Skylight
    • Power Vent Fan
    • Foot Flush Porcelain Toilet
    • Medicine Cabinet with Mirror
    • Designated Linen Closet
    • Pocket Door for Easy Entry
    • Surge Protected GFCI Outlet
    • Ducted Heating and A/C Vents

  • Bedroom

    • Dual Wardrobes (select models)
    • Deep Closet with Stackable Washer/Dryer Prep (Bed Slide Models)
    • King Size Bed
    • Underbed Storage with Struts
    • Residential Bedspread
    • Ducted Heat Vents
    • Ducted 15,000 BTU A/C
    • USB Ports
    • Convenient Bedroom Outlets
    • Cubby Holes and Nightstands

  • Appliances/Equipment

    • Triple 15,000 BTU A/C Combo on Single Thermostat
    • 35,000 BTU High-Capacity Gas Furnace
    • 30" Residential Microwave
    • 16 Cubic Foot French Door Refrigerator (12V)
    • Tankless On-Demand Water Heater
    • Water Heater Bypass
    • High-Capacity 12V Water Pump
    • EZ Winterization Hook-Up
    • Roof-Mounted 200W Solar Panel
    • 30 Amp Charge Controller

  • Safety Equipment

    • CO Detector
    • LP Detector
    • Fire Extinguisher
    • Propane Alarm
    • Smoke Alarm
    • TST Banded Tire Pressure Monitor System STANDARD
    • Deadbolt Lock in Entry Door
    • Lockable Slam-Latch Baggage Doors
    • 4" Rear Bumper

  • Premium Exterior Standards

    • High Gloss Gel Coated Exterior Fiberglass
    • Molded Fiberglass Gel Coat Front Cap with LED Lights
    • Dexter Leaf Spring Axles
    • Dexter E-Z LUBE Axle Hubs
    • Dexter E-Z FLEX Rubberized Suspension Equalizer
    • One-Touch Auto Leveling
    • Thick Insulated Pass-Through Baggage Doors
    • Extended Drip Spouts
    • Black, Dark Tinted, Radius Safety Glass Windows
    • Dual 30 lb. LP Bottles – Weight Distribution Design
    • Exterior Camp Kitchen (select models)
    • Quick Connect Exterior LP Connection
    • High Output Exterior Speaker
    • XL Extendable Grab Handle
    • 30" Radius Friction Hinge Entry Door
    • Doggy D-Ring
    • Bottle Opener
    • Outside Television Hook-Up
    • 16" Aluminum Wheels
    • Upgraded G-Rated Tires
    • Electric Awning with LED lighting
    • Roof Ladder Standard
    • 4" Rear Bumper
    • Easy Access Spare Tire
    • Detachable Power Cord
    • 50 AMP Electrical Service
    • Labeled Universal Docking Center
